Cast Iron Butterfly

Cast Iron Butterfly Valve
Cast Iron Butterfly Valve 2

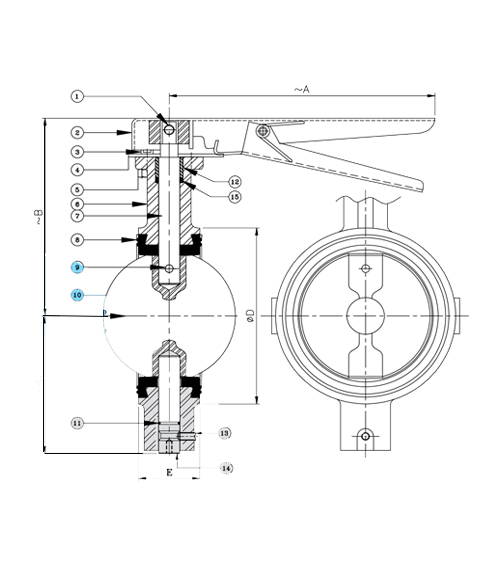

STANDARD MATERIAL COMBINATION

P.N. Name Of Part No. Off Material Specification
1 Grub Screw 1 M.S. -
2 Handle
UP TO 5" 1 M.S. Sheet IS 2062 Fabricated (Powder Coated)
6" TO 12" M.I./C.S. IS 2062
3 L-Key Bolt 2 Carbon Steel -
4 Indexing Plate 1 M.S. IS 2062
5 Nut 2 Carbon Steel -
6 Body 1 C.I. IS 210 FG 200
7 Upeer Stem 1 S.S. IS 6603 X12 Cr. 12
8 Moulded Liner 1 Buna-N/EPDM Shore Hardness 70°± 4
9 Taper Pin 1 Hardened Steel -
10 Disc 1 S.G. Iron/SS IS 1865 SG 400/15/ASTM A351 Gr. CF8/CF8M
11 'O' Ring 1 BUNA-N/EPDM Shore Hardness 60°± 4
12 Bushing 1 PTFE
13 Lower Stem 1 S.S. IS 6603 X12 Cr. 12
14 Grub Screw 1 M.S. -
15 Packing 1 BUNA-N/EPDM Shore Hardness 60º± 4
Item Sizes Item Code End Details
Cast Iron Butterfly Valve-pn-10/16 40mm TO 300mm Cl-091/CI-091A/CI-091B Insertion between Flanges as per ASME B16.1, CL-125

DIMENSION DATA

Valve Size 40MM 50MM 65MM 80MM 100MM 125MM 150MM 200MM 250MM 300MM
~A 212 212 212 212 212 212 260 356 406 406
~B 118 130 146 151 162 191 210 236 290 320
~C 64 70 81 81 116 142 147 171 211 248
ØD 81 95 111 120 144 175 200 255 325 374
E 33 43 46 46 52 56 56 60 68 78

DIMENSION DATA

Item Sizes Test Pressures Testing Standard
Body Seat
Cast Iron Butterfly Valve Pn-10 Wafer Type Without Lugs 40mm to 300mm 15 BAR 11 BAR IS: 13095
Cast Iron Butterfly Valve Pn-16 Wafer Type Without Lugs 40mm to 300mm 24 BAR 17.6 BAR IS: 13095
NOTE: 1. The Above Data Is Subject To Change Without Notice Due To Our Continual Product Improvement Program,2.Valves Can Be Supplied In Other MOC's On Request, Cast Iron (IS 210 Gr. FG 260) Ductile Iron (ASTMA 395 Gr. 60-40-18 / 65-45-15 / GGG 40.30) & D2 (ASTMA 439 Gr. D2/ D2A/ D2B/ D2C)

STANDARD MATERIAL COMBINATION

P.N. Name Of Part No. Off Material Specification
1 Grub Screw 1 M.S. -
2 Lever
UP TO 6" 1 M.S. Sheet IS 2062 Fabricated (Powder Coated)
8" TO 12" M.I./C.S. ASTM A338/ASTM A216 Gr. WCB.
3 L-Key Bolt/bolt 2 Carbon Steel Zinc Plated
4 Indexing Plate (Chrome Plated) 1 M.S. IS 2062
5 Nut 2 Carbon Steel Zinc Plated
6 Body 1 C.I. EN 1561 Gr. 200
7 Upper Stem 1 S.S ASTM A 276 TYPE 410 or its eq.
8 Moulded Liner 1 BUNA-N/EPDM Shore Hardness 70°±4
9 Taper Pin 1 Hardened Steel -
10 Disc 1 D.I./SS ASTM A395/ASTM A351 Gr.CF8/CF8M
11 O' Ring 1 BUNA-N/EPDM Shore Hardness 60°±4
12 Bushing 1 PTFE -
13 Lower Stem 1 S.S ASTM A 276 TYPE 410 or its eq.
14 Grub Screw 1 M.S. -
15 Packing 1 BUNA-N/EPDM Shore Hardness 60º± 4
NOTE: 1. The Above Data Is Subject To Change Without Notice Due To Our Continual Product Improvement Program,2.Valves Can Be Supplied In Other MOC's On Request, Cast Iron (IS 210 Gr. FG 260) Ductile Iron (ASTMA 395 Gr. 60-40-18 / 65-45-15 / GGG 40.30) & D2 (ASTMA 439 Gr. D2/ D2A/ D2B/ D2C)
Item Sizes Item Code End Details
Cast Iron Butterfly Valve-pn-16 40mm TO 300mm CI-061/CI-061A/CI-061B Insertion Between Flanges As Per Ansi B16.1 Cl-125
Cast Iron Butterfly Valve-pn-20 40mm TO 300mm CI-095/CI-095A/CI-095B Insertion Between Flanges As Per Asme B16.5 Cl-150
Cast Iron Butterfly Valve-pn-25 40mm TO 300mm CI-96 Insertion between Flanges as per BSEN 1092 PN-25

DIMENSION DATA

VALVE SIZE 40MM 50MM 65MM 80MM 100MM 125MM 150MM 200MM 250MM 300MM
~A 212 212 212 212 212 212 260 356 406 406
~B 118 130 146 151 162 191 210 236 290 320
~C 64 70 81 81 116 142 147 171 211 248
D 81 95 111 120 144 175 200 255 325 374
E 33 43 46 46 52 56 56 60 68 78
Item Sizes Test Pressures Testing Standard
Body Seat
Cast Iron Butterfly Valve Pn-16 Wafer Type Without Lugs 40mm to 300mm 24 BAR (HYD) 17.6 BAR (HYD) BSEN: 12266
Cast Iron Butterfly Valve Pn-20 Wafer Type Without Lugs 40mm to 300mm 30 BAR (HYD) 22 BAR (HYD) BSEN: 12266
Cast Iron Butterfly Valve Pn-25 Wafer Type Without Lugs 40mm to 300mm 37.5 BAR (HYD) 27.5 BAR (HYD) BSEN: 12266
NOTE: 1.The above data is subject to change without notice due to our continual product improvement program,2.Valves Can be supplied in other MOC's on request, Cast Iron (IS 210 Gr. FG 260) Ductile Iron (ASTMA 395 Gr. 60-40-18 / 65-45-15 / GGG 40.30) & D2 (ASTMA 439 Gr. D2/ D2A/ D2B/ D2C)
Cast Iron Butterfly Valve
Cast Iron Butterfly Valve 2

STANDARD MATERIAL COMBINATION

P.N. Name Of Part No. Off Material Specification
1 Grub Screw 1 M.S. -
2 Lever
UP TO 6" 1 M.S. Sheet IS 2062 Fabricated (Powder Coated)
8" TO 12" M.I./C.S. ASTM A338/ASTM A216 Gr. WCB.
3 L-Key Bolt/bolt 2 Carbon Steel Zinc Plated
4 Indexing Plate (Chrome Plated) 1 M.S. IS 2062
5 Nut 2 Carbon Steel Zinc Plated
6 Body 1 C.I. EN 1561 Gr. 200
7 Upper Stem 1 S.S ASTM A 276 TYPE 410 or its eq.
8 Moulded Liner 1 BUNA-N/EPDM Shore Hardness 70°±4
9 Taper Pin 1 Hardened Steel -
10 Disc 1 D.I./SS ASTM A395/ASTM A351 Gr.CF8/CF8M
11 O' Ring 1 BUNA-N/EPDM Shore Hardness 60°±4
12 Bushing 1 PTFE -
13 Lower Stem 1 S.S ASTM A 276 TYPE 410 or its eq.
14 Grub Screw M.S. 1 -
15 Packing 1 BUNA-N/EPDM Shore Hardness 60°±4
NOTE: 1. The Above Data Is Subject To Change Without Notice Due To Our Continual Product Improvement Program,2.Valves Can Be Supplied In Other MOC's On Request, Cast Iron (IS 210 Gr. FG 260) Ductile Iron (ASTMA 395 Gr. 60-40-18 / 65-45-15 / GGG 40.30) & D2 (ASTMA 439 Gr. D2/ D2A/ D2B/ D2C)

STANDARD MATERIAL COMBINATION

ITEM SIZES ITEM CODE END DETAILS
Cast Iron Butterfly Valve-pn-16 40mm TO 300mm CI-061/CI-061A/CI-0618 Insertion between Flanges as per ANSI B16.1 CL-125
Cast Iron Butterfly Valve-pn-20 40mm TO 300mm CI-095/CI-095A/CI-0958 Insertion between Flanges as per ASME B16.5 CL-150
Cast Iron Butterfly Valve-pn-25 40mm TO 300mm CI-96 Insertion between Flanges as per BSEN 1092 PN-25

DIMENSION DATA

VALVE SIZE 40MM 50MM 65MM 80MM 100MM 125MM 150MM 200MM 250MM 300MM
~A 212 212 212 212 212 212 260 356 406 406
~B 118 130 146 151 162 191 210 236 290 320
~C 64 70 81 81 116 142 147 171 211 248
D 81 95 111 120 144 175 200 255 325 374
E 33 43 46 46 52 56 56 60 68 78
Item Sizes Test Pressures Testing Standard
Body Seat
Cast Iron Butterfly Valve Pn-16 Wafer Type Without Lugs 40mm to 300mm 24 Bar (HYD) 17.6 Bar (HYD) BSEN: 12266
Cast Iron Butterfly Valve Pn-20 Wafer Type Without Lugs 40mm to 300mm 30 Bar (HYD) 22 Bar (HYD) BSEN: 12266
Cast Iron Butterfly Valve Pn-25 Wafer Type Without Lugs 40mm to 300mm 37.5 Bar (HYD) 27.5 Bar (HYD) BSEN: 12266

STANDARD MATERIAL COMBINATION

P.N. Name Of Part No. Off Material Specification
1 Lever
1½" TO 6" 1 M.S. Sheet IS 2062 Gr. B
8" TO 12" M.I (OR) C.S (OR) Nodular Iron ASTMA 338/ ASTMA 216 Gr. WCB or B.S. 2789 Gr. 500/7
2 Spring Washer 2 Carbon Steel -
3 Cover Plate 1 M.S. Sheet IS 2062 Gr. B
4 Nuts 2 Carbon Steel/ Alloy Steel BS 4190/ ASTM A194 Gr. 2H
5 Bolts 2 Carbon Steel/ H.T. Steel BS 4190/ASTM A193 Gr. B7
6 Body 1 C.I./D.I. BSEN 1561 Gr. 200/ B.S.2789 Gr. 500/7
7 Upper Stem 1 S.S. ASTM A 276 Type 410 or its eq.
8 O' Ring 1 BUNA-N/EPDM Shore Hardness 60°±4
9 Liner 1 EPDM Shore Hardness 70°±4
10 Lower Stem 1 S.S. ASTM A 276 TYPE 410 or its eq.
11 Bushing 1 Heavy Duty Corrosion Resistant To Absorb Side Thrust
12 Washer 1 BUNA-N/EPDM Shore Hardness 60°±4
13 Grub Screw 1 M.S. -
14 Disc 1 C.I./S.S./ AL. Bronze/ S.G. Iron BSEN 1561 Gr.200/ ASTMA 351 Gr.CF8/ BSEN 1982/ BS 2789 Gr. 500/7
15 Bush 1 PH. Bronze/ PTFE
16 Taper Pin 1 Steel Hardened
17 Gear Box 1 C.I. BSEN 1561 Gr.200
18 Handwheel 1 CI / MS / MIBSEN 1561 Gr.200/ IS 2062 Gr.B/ IS 2108 Gr.BM 290
NOTE: 1. The above data is subject to change without notice due to our continual product improvement program.2.Valves Can be supplied in other MOC's on request, Cast Iron (IS 210 Gr. FG 260) Ductile Iron (ASTMA 395 Gr. 60-40-18 / 65-45-15 / GGG 40.30) & D2 (ASTMA 439 Gr. D2/ D2A/ D2B/ D2C)

DIMENSION DATA

Valve Size 40MM 50MM 65MM 80MM 100MM 125MM 150MM 200MM 250MM 300MM 350MM 400MM
A 260 260 260 260 260 260 260 356 406 406 - -
B 120 133 150 153 210 200 237 235 290 330 - -
C 64 75 96 100 120 140 147 178 214 260 281 315
D 82 90 105 120 144 175 200 255 325 374 406 456
E 33 43 46 46 52 56 56 60 68 78 92 102
Fø 15.8 19 19 19 19 22.3 22.3 22.3 25.4 25.4 28.6 28.6
G (PCD) 98.5 120.6 139.7 152.4 190.5 215.9 241.3 298.4 361.9 431.8 476.2 539.8
I - - - - - - 240 240 290 330 340 412
Jø - - - - - - 200 200 250 250 300 300
H° 90° 90° 90° 90° 45° 45° 45° 45° 30° 30° 30° 22.5°

DIMENSION DATA

Item Sizes Test Pressures
Body Seat Testing Standard
Cast Iron Butterfly Valve Cl-125 40mm to 400mm 20.7 Bar g (Hyd.) 15.18 Bar g (Hyd.) BSEN 12266
NOTE: 1.The above data is subject to change without notice due to our continual product improvement program,2.Valves Can be supplied in other MOC's on request, Cast Iron (IS 210 Gr. FG 260) Ductile Iron (ASTMA 395 Gr. 60-40-18 / 65-45-15 / GGG 40.30) & D2 (ASTMA 439 Gr. D2/ D2A/ D2B/ D2C)
