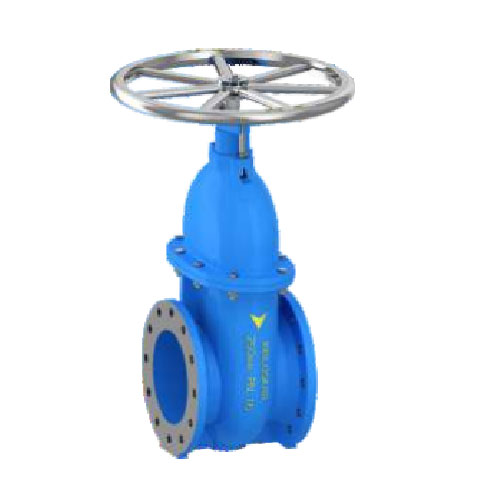

Kirloskar Sluice Valve


Applications

  • Suitable for Isolation duty (Full Open / Full Close)

  • Clear water having turbidity up to 5000 ppm and temperature up to 45° C

  • Other fluids with maximum pressure / temperature conditions within the scope of IS: 14846

  • Valves can be designed specialty with suitable material of construction for temperature up to 180 centigrade with limited pressure condition

Salient Constructional Features

  • Rigid and study design with minimum loss of head across the valve.

  • Perfect interchangeability of components.

  • Perfect machining and Press fitting of body and wedge rings.

  • Excellent finish on spindle threads resulting in low friction and smooth operation of valves.

  • Assured leak tightness for long service life.

  • Perfect machining and Press fitting of body and wedge rings.

Hydrostatic Test Pressures :

Scope Size Range Manufacturing Standard and Pressure Rating (MPa) Hydrostatic test Pressures Kg /Cm2 (MPa)
Body Seat
Standard 40 mm to 1800 mm IS : 14846 PN 1.0 15.3 (1.5) 10.2 (1.0)
Supply 40 mm to 1800 mm IS : 14846 PN 1.6 24.47 (2.4) 16.32 (1.6)
Optional For Higher Pressure ratings PN : 2.0 / 2.5 / 3.0 can be supplied on case to case basis.

Material of Construction :

Scope Standard supply Optional
Body / Wedge / Dome Cast Iron SG. Iron as per IS : 1865, 2% NiCI, ASTM A 439 Type D2, Cast Steel as per IS : 1030 / ASTM A 216 Gr WCB
Body / Wedge / Rings Leaded Tin Bronze as per IS : 318 Gr. LTB - 2 SS ASTM A276 Type 304 / 316 / 410 / 304L / 316L / SS IS 6603
Spindle St. Steel as per IS : 6603 Gr. 12Cr12 High Tensile Brass; St. Steel as per IS : 1570; IS : 6603; ASTM A 276, BS : 970
Stem Nut Leaded Tin Bronze as per IS : 318 Gr. LTB - 2 High Tensile Brass

End Connection

Scope Flange Drilling Standard
Standard Supply IS : 1538 - Table 4 and 6
Optional BS : 10 - Table D / E / F
BS EN 1092.2 PN10, PN16
IS : 1538 Table 5
ANSI B 16.1 / 16.5
DIN 2532 (ND 10)
IS : 6392
Sluice Valve
Sluice Valve

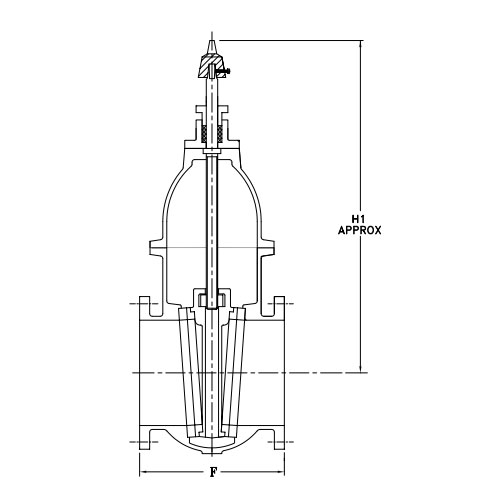

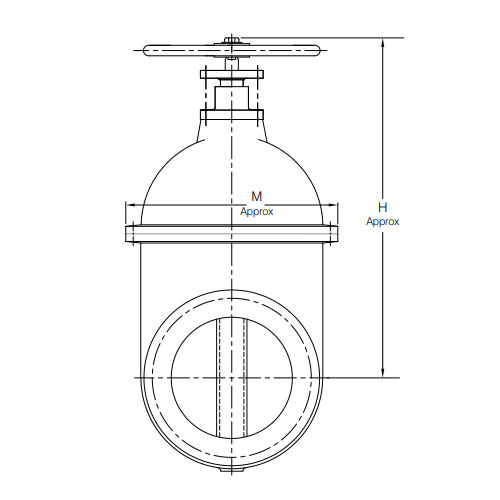

General Outline Dimensions :

Rating Valve Size F M H H1
PN 1.0 and PN 1.6 40 165 124 290 350
50 178 143 350 410
65 190 214 365 425
80 203 218 365 460
100 229 144 460 550
125 254 280 515 575
150 267 312 555 630
200 292 444 720 775
250 330 482 810 875
300 356 574 910 1010
350 381 640 910 1050
400 406 680 986 1105
450 432 770 1193 1267
500 457 860 1217 1337
600 508 940 1400 1479

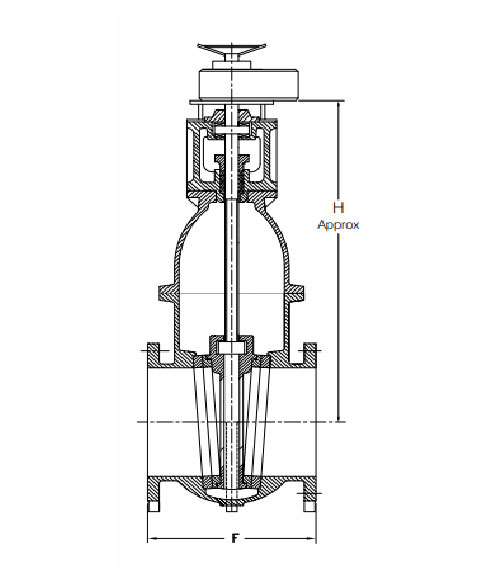

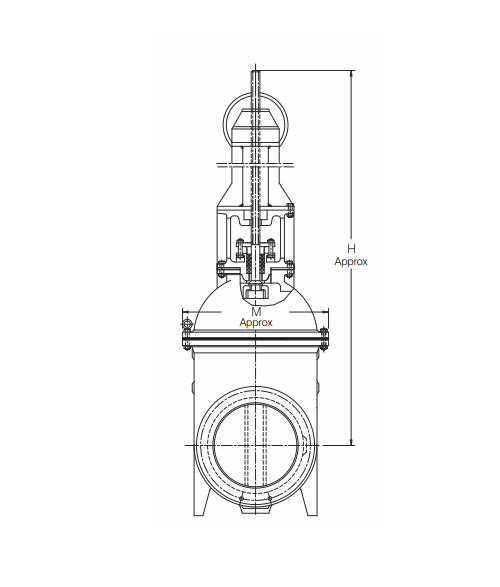

General Outline Dimensions

Rating Valve Size F M M For PN 1.6 H H1 (With Gear Box)
PN 1.0 and PN 1.6 700 610 1120 1150 1850 2170
750 610 1170 1240 2070 2400
800 660 1220 1264 2100 2450
900 711 1330 1330 2280 2650
1000 811 1490 1490 2440 2800
1100 811 1610 1660 2690 3050
1200 810 1670 1670 2690 3050
PN 0.6 / 1.0 / 1.6 1300 1016 1837 1937 2950 3450
1500 1118 2152 2152 2950 4000
1800 1118 2537 2537 4230 4900

General Outline Dimensions

Rating Valve Size F M J- Shut H- Open
PN 1.0 and PN 1.6 40 165 124 125 430
50 178 143 135 510
65 190 214 165 537
80 203 218 195 553
100 229 244 230 675
125 254 280 265 785
150 267 312 300 904
200 292 444 325 1177
250 330 482 355 1366
300 356 574 390 1566

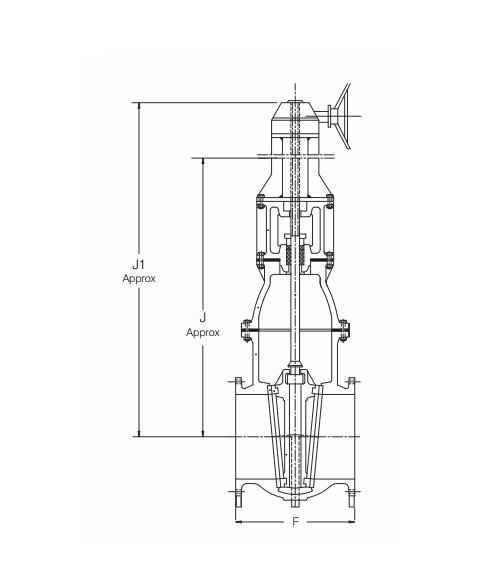

General Outline Dimensions

Rating Valve Size F M J- shut J1- Shut (With Gear Box) H - Open
PN 1.0 and PN 1.6 350 381 640 1320 1550 1750
400 406 680 1450 1700 1860
450 432 770 1600 1850 2120
500 457 860 1715 1910 2285
600 508 940 1955 2200 2625
700 610 1120 2647 2750 3371
750 610 1170 2830 3000 3670
800 660 1220 2640 3000 3475
900 711 1330 3035 3300 3970
811 1444 3370 3800 4570
1100 811 1610 3750 4000 4590
1200 810 1670 3900 3900 5100
PN 0.6 / 1.0 / 1.6 1500 1118 2152 5400 5400 6540
