Cast Steel Ball Valve 300

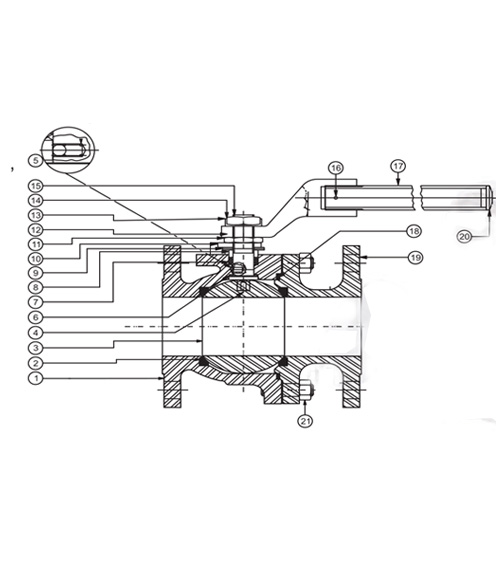

Cast Steel Ball Valve Diagram 300

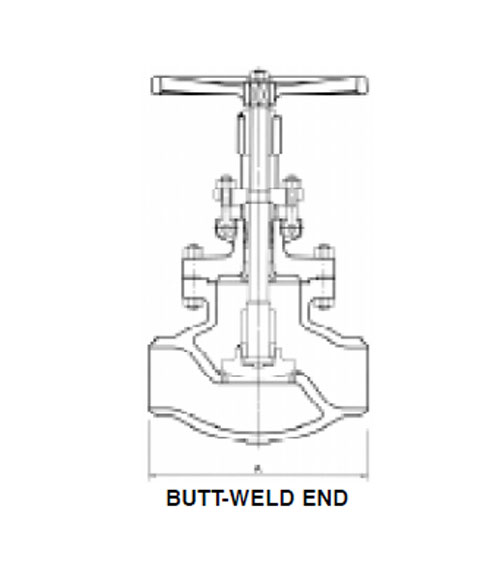

Globe Valves Butt Weld End

DIMENSIONAL DATA CLASS - 300

DN 15 20 25 32 40 50 65 80 100 150
NPS ½" 3/4 1 11/4 1½ 2 2½ 3 4 6
L/L1 140 152 165 178 190 216 241 282 305 403
∅D 95 115 125 135 155 165 190 210 255 320
T 14.2 15.8 17.5 19.1 20.6 22.2 25.4 28.6 31.8 36.5
K(PCD) 66.7 82.6 88.9 98.4 114.3 127 149.2 168.3 200 269.9
n 04 04 04 04 04 08 08 08 08 12
∅d 15.9 19.1 19.1 19.1 22.3 19.1 22.3 22.3 22.3 22.3
LL 125 175 175 225 225 225 400 400 460 775
Aprox.wt. 3.525 4.900 7.9 9.8 12 19.5 24.7 39 67 132
