Cast Steel Ball Valve 600

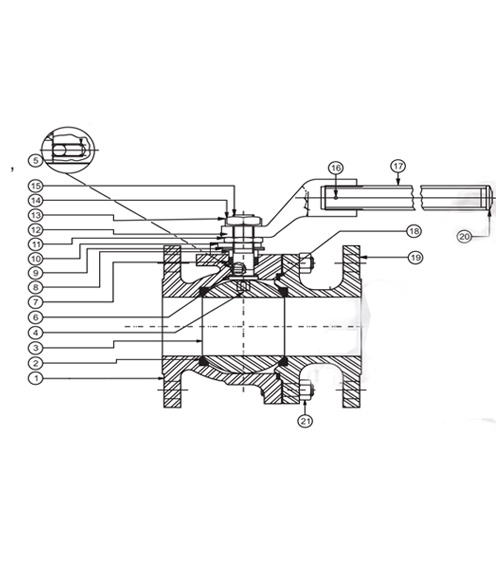

Cast Steel Ball Valve Diagram 600
Globe Valves Butt Weld End

DIMENSIONAL DATA CLASS - 600

DN 15 20 25 32 40 50 65 80 100 150
NPS ½" 3/4 1 1 1/4 1½ 2 2½ 3 4 6
L/L1 165 190 216 229 241 292 330 356 432 559
∅D 95 115 125 135 155 165 190 210 275 355
T 14.2 15.8 17.5 20.6 22.2 25.4 28.6 31.8 38.1 47.6
K(PCD) 66.7 82.6 88.9 98.4 114.3 127 149.2 168.3 216.9 292.1
n 04 04 04 04 04 08 08 08 08 12
∅d 15.9 19.1 19.1 19.1 22.3 19.1 22.3 22.3 25.4 28.6
LL 125 175 175 225 225 225 400 400 460 775
Aprox.wt -- -- 12 15 19 23.5 34.5 43 101 130
NOTE: The above data is subject to change without notice due to our continuing product improvement program. (WEIGHT GIVEN IN KGS)

TEST PRESSURES

Class Shell Test (Hydrostatic) Seat Test
Hydrostatic Pneumatic
150 30 Bar 435 Psi g 22 Bar 319 Psi g 6.9 bar 100 Psi g
300 77 Bar 1102 Psi g 57 Bar 780 Psi g 6.9 bar 100 Psi g
600 154 Bar 2175 Psi g 77 Bar 1080 Psi g 6.9 bar 100 Psi g
