Check Valves ASME - 300

Your search for reliable ASME 300 Check Valves ends with Salim Export. As a stockist in Mumbai, India, we make it convenient for you to acquire high-quality check valves.

Standard Materials of Construction

  • Body : ASTM A216 Gr. WCB

  • Body Seat Ring : ASTM A105 + HF*

  • Disc : ASTM A216 Gr. WCB + 13% Cr. Steel

  • Hinge : ASTM A216 Gr. WCB

  • Disc Washer : 13% Cr. Steel

  • Disc Nut : SS 304

  • Disc Nut Pin : 13% Cr. Steel

  • Hinge Pin : 13% Cr. Steel

  • Gasket : ASTM A308

  • Cover : ASTM A216 Gr. WCB

  • Stud : ASTM A193 Gr. B7

  • Stud Nut : ASTM A194 Gr. 2H

  • Hinge Pin Cover : ASTM A105

  • Hinge Pin Cover Bolt : ASTM A193 Gr. B7

  • Nameplate : SS 304

  • * HF - Hard-Faced with Stellite #6 or equivalent For other body / bonnet materials.

Check Valves ASME 300 Class

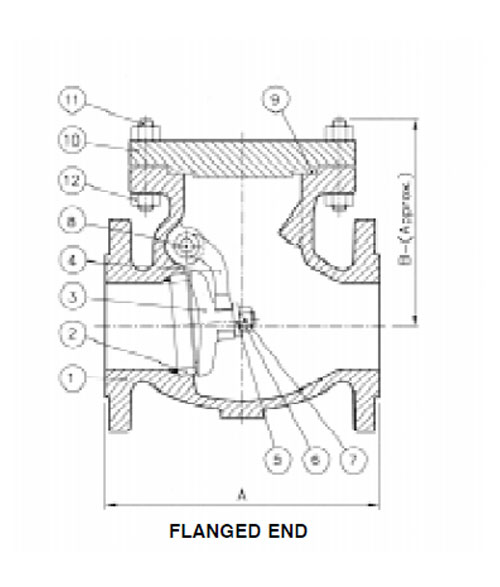

Check Valves ASME 300 Flange End
Check Valves ASME 300 Butt Weld End

Dimensions (in mm, unless specified) & Weights (in kg)

Valve Size A B Approx.Wt.
Fl. B/W Fl. B/W
50 (2”) 267 267 165 24 19
65 (21/2”) - - - - -
80 (3”) 317 317 190 45 36
100 (4”) 356 356 229 70 56
150 (6”) 444 444 279 151 129
200 (8”) 533 533 343 242 210
250 (10”) 622 622 368 333 284
300 (12”) 711 711 412 450 378
350 (14”) 839 839 559 659 556
400 (16”) 864 864 636 873 747
450 (18”) 978 978 562 1090 900
500 (20”) 1016 1016 675 1360 1176
600 (24”) 1346 1346 790 1850 1573
Check Valves ASME 300 Flange End
Check Valves ASME 300 Butt Weld End
