Cryogenic Two Piece Ball Valves

Cryogenic Two Piece Ball Valve

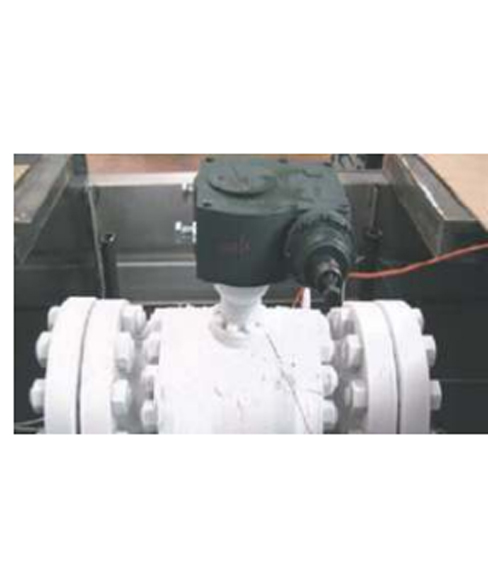

Cryogenic Two Piece Ball Valve 2

Dimensions are in inches. Approximate weights in lb

SIZE A E
Class Class 150/300/600
- 150 300 600 RB FB
½ 4.25 5.50 6.50 0.50 0.50
¾ 4.62 6.00 7.50 0.50 0.75
1 5.00 6.50 8.50 0.75 1.00
1¼ 5.50 7.00 9.00 1.00 1.25
1½ 6.50 7.50 9.50 1.25 1.50
2 7.00 8.50 11.50 1.50 2.00
2½ 7.50 9.50 13.00 2.00 2.50
3 8.00 11.12 14.00 2.28 3.00
4 9.00 12.00 17.00 3.00 4.00
6 15.50 15.88 - 4.00 6.00
8 18.00 19.75 - 6.00 8.00
10 21.00 22.38 - 8.00 10.00

Dimensions are in inches. Approximate weights in lb

SIZE WEIGHTS
Class 150 Class 300 Class 600
RB FB RB FB RB FB
½ 8.2 8.2 9.5 9.5 14.3 14.3
¾ 9.1 12.4 11.5 15.0 16.9 22.0
1 13.3 14.2 17.2 18.6 25.3 29.0
1¼ 15.7 22.0 19.3 27.3 29.9 44.2
1½ 23.3 25.5 30.6 32.8 46.4 52.0
2 29.1 38.7 35.7 47.9 58.0 108.0*
2½ 45.7 66.0 49.0 80.0 119.0* 154.0*
3 68.0 75.0 87.0 100.0 159.0* 192.0*
4 110.0* 150.0* 146.0* 201.0* 227.0* 306.0*
6 174.0* 258.0* 242.0* 348.0* - -
8 273.0* 421.0* 412.0* 590.0* - -
10 425.0* 636.0* 603.0* 872.0* * Weights with gearbox
Note: 6” to 10” valves can be Supplied on request having short pattern face to face dimension
