Elite Forged Steel Check valve

Elite Forged Steel Check Valve

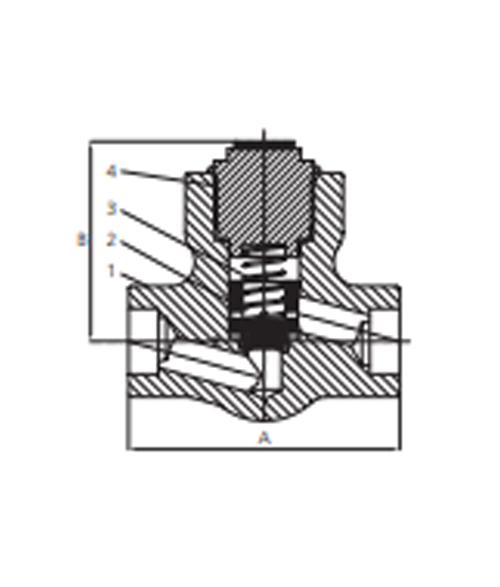

Elite Forged Steel Check Valve 2
Size Class 1500/ 2500 Class 4500
NPS DN A B Wt. A B Wt.
½ 15 115 83 3 130 77 5
¾ 20 115 83 3 130 77 5
1 25 130 92 5 165 97 9
1¼ 32 178 122 9 188 127 18
1½ 40 178 122 9 188 127 18
2 50 202 136 14 230 146 30
All dimensions in mm and weights in kgValves in ASME Classes 1500 & 2500 are available in sizes up to 2”

Dimensions & Weights

No. Components Materials
A105 F22 F91 F304
1 Body (Integral Seat) A105 A182 Gr. F22 Cl. 3 A182 Gr. F91 A182 Gr. F304
2 Disc A479 Type 410 + HF A479 Type 410 + HF A479 Type 316 + HF A479 Type 316 + HF
3 Spring Inconel X750
4 Cover A105 A182 Gr. F22 Cl. 3 A182 Gr. F91 A182 Gr. F304
-- Identification Plate Stainless Steel
HF - Hard-Faced with Stellite 6 or equivalent
