Elite Forged Steel Globe valve

Size		Class 1500 / 2500				Class 4500
NPS	DN	A	B	ØC	Wt.	A	B	ØC	Wt.
½	15	115	265	175	8	130	285	175	11
¾	20	115	265	175	8	130	285	175	11
1	25	130	290	225	10	165	320	225	16
1¼	32	178	375	275	18	188	410	275	29
1½	40	178	375	275	18	188	410	275	29
2	50	202	430	300	28	230	437	300	50
All dimensions in mm and weights in kgValves in ASME Classes 1500 & 2500 are available in sizes up to 2”

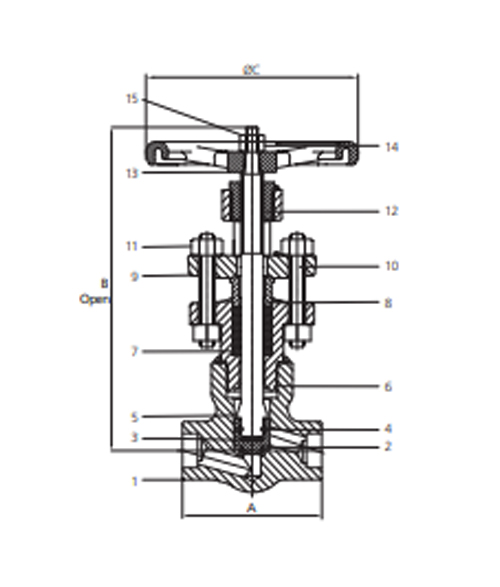

No.	Components	Materials
No.	Components	A105	F22	F91	F304
1	Body (Integral Seat)	A105	A182 Gr. F22 Cl. 3	A182 Gr. F91	A182 Gr. F304
2	Disc	A479 Type 410 + HF	A479 Type 410 + HF	A479 Type 316 + HF	A479 Type 316 + HF
3	Disc Washer	A479 Type 410	A479 Type 410	A479 Type 431	A479 Type XM19
4	Retainer Wire	A479 Type 430	A479 Type 430	A479 Type 430	A479 Type 316
5	Stem	A182 Gr. F6a	A182 Gr. F6a	A479 Type XM19	A479 Type XM19
6	Bonnet	A105	A182 Gr. F22 Cl. 3	A182 Gr. F91	A182 Gr. F304
7	Packing	Die-moulded Graphite Packing with Braided end-rings
8	Gland	A276 Type 410		A276 Type 316
9	Gland Flange	A105	A105	A105	A182 Gr. F304
10	Stud	A193 Gr. B7	A193 Gr. B16	A193 Gr. B16	A193 Gr. B8 Cl. 1
11	Heavy Hex Nut	A194 Gr. 2H	A194 Gr. 7	A194 Gr. 7	A194 Gr. 8
12	Yoke Bush	B148	B148	B148	Aluminium Bronze
13	Handwheel	IS 1865 Gr. SG400/ 15
14	Heavy Hex Nut	A194 Gr. 2H	A194 Gr. 7	A194 Gr. 7	A194 Gr. 8
15	Lock Nut	A194 Gr. 2H	A194 Gr. 7	A194 Gr. 7	A194 Gr. 8
--	Identification Plate	Stainless Steel
HF - Hard-Faced with Stellite 6 or equivalent
