Elite Globe ASME 150 300 600

Elite Globe Asme 150 300 600
Elite Globe Asme 150 300 600 2

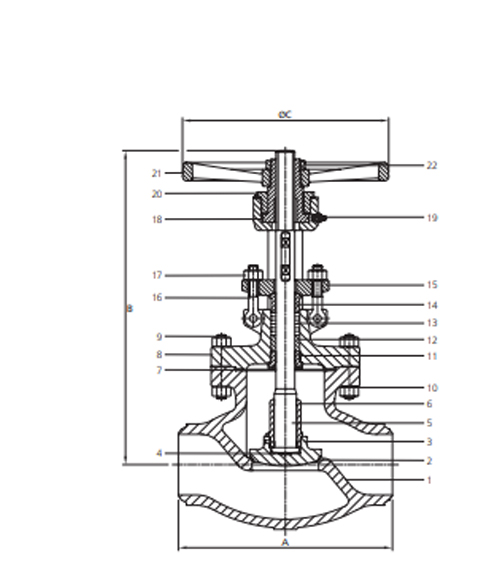

No. Components Materials
1 Body A216 Gr. WCB
2 Seat Ring Insitu on Body + HF
3 Disc (Plug Type) A216 Gr. WCB + 13% Cr. Steel
4 Disc Washer A276 Type 410
5 Stem A182 Gr. F6a
6 Disc Nut A276 Type 410
7 Gasket
Cl.150 Spiral-wound SS 316 with
Cl.300 Graphite filler
Cl.600 RTJ - SS 316/ Soft Iron
8 Bonnet A216 Gr. WCB
9 Stud A193 Gr. B7
10 Hex Nut A194 Gr. 2H
12 Spacer Ring A276 Type 410
13 Packing Graphite with Braided end-rings
14 Gland A276 Type 410
15 Gland Flange A105N/ A216 Gr. WCB
16 Eye Bolt/ Stud A193 Gr. B7
17 Hex Nut A194 Gr. 2H
18 Stem Nut (Yoke Sleeve) A439 Type D2
19 Grease Fitting Steel
20 Retainer Nut S.G Iron/ Steel
21 Handwheel
22 Handwheel Nut
-- Identification Plate SS 304
Valves in other materials available on demand Globe Valves in sizes 10” and above are offered with insitu hardfaced integral seat rings

Dimensions & Weights

Size Class 150 Class 300 Class 600
NPS DN A B ØC Wt A B ØC Wt A B ØC Wt.
FL BW FL BW FL BW FL BW FL BW FL BW
2 50 203 203 380 203 23 20 267 267 415 203 33 28 292 292 475 254 42 38
3 80 241 241 460 254 41 38 318 318 515 254 58 50 356 356 585 356 75 60
4 100 292 292 535 305 66 62 356 356 605 356 97 84 432 432 665 406 136 116
6 150 406 406 610 356 118 110 444 444 715 457 186 164 559 559 1085 710 260 210
8 200 495 495 775 457 230 218 559 559 1185 710 410 375 660 660 1400 900 713 633
10 250 622 622 970 500 375 360 622 622 1290 900 700 650 787 787 1570 1000 1010 910
12 300 698 698 1195 710 495 470 711 711 1480 900 850 780 838 838 1810 800 1300 1110
14 350 787 787 1435 800 830 790 838 838 1700 1000 1100 982 889 889 1970 900 1690 1469
16 400 914 914 1570 800 1100 1047 864 864 1605 710 1650 1473 991 991 1615 800 2300 2000
18 450 978 978 1830 710 1620 1542 978 1040 1640 710 2000 1785 1092 1092 1790 900 2600 2260
20 500 978 978 1850 900 1620 1542 1016 1016 2370 1000 2500 2232
24 600
All dimensions in mm and weights in kg
