Elite Single Piece 150 300

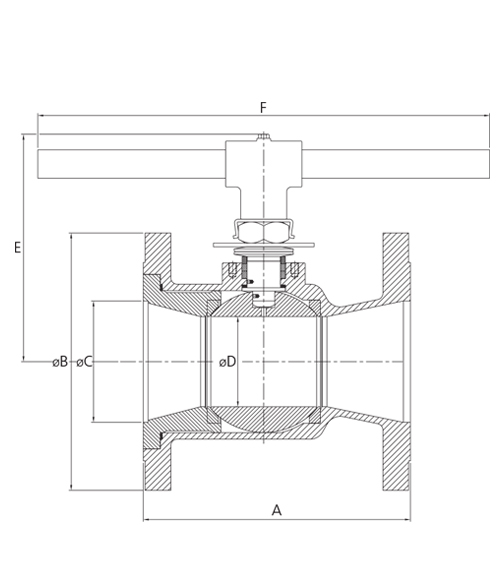

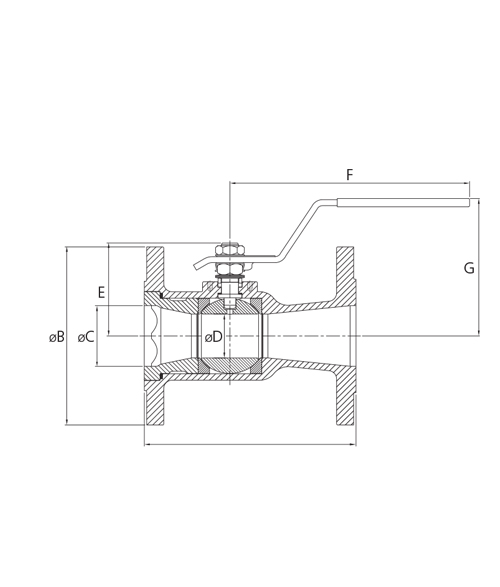

Size		A		B		C	D	E	F	G	Wt.		ISO 5211 Base
DN	NPS	Cl 150	Cl 300	Cl 150	Cl 300	C	D	E	F	G	Cl 150	Cl 300	Cl 150	Cl 300
15	½	108	140	90	95	13	11	38	120	90	1.2	1.7	F03	F03
20	¾	117	152	100	115	19	11	38	120	90	1.4	2.5	F03	F03
25	1	127	165	110	125	25	17	46	140	100	2.1	3.6	F03	F03
40	1½	165	190	125	155	38	27	56	180	115	3.8	4.5	F04	F04
50	2	178	216	150	165	51	37	75	210	122	6.5	9.2	F05	F05
65	2½	190	241	180	190	64	49	102	210	142	11	15	F07	F07
80	3	203	282	190	210	76	62	175	390	-	15.5	22	F07	F07
100	4	229	305	230	255	102	74	195	390	-	24.6	34.8	F07	F07
150	6	267	403	280	320	152	98	245	*	-	40	65	F010	F012
All dimensions in mm and weights in kg*600 mm for Cl 150 & 890 mm for Cl 300API 6D design valves are also available on demand
