KSB Forged Lift NRV Valve 150-600

Gate Valve 150 600

KSB gate valves are highly effective and undergo numerous rigorous tests before being supplied to the final consumer. Gate valves have a long lifespan. It lowers business maintenance costs, which immediately results in high-quality output. They can be used in various applications because of their ability to withstand a range of pressure ratings. Worldwide, there is a great need for KSB gate valves..


Product Uses?

  • Refineries
  • Power Plant
  • Pharmaceuticals
  • Water Waste Management

KSB Gate Valve Material

  • WCB
  • WC6
  • WC9
  • LCB

Size

  • 50mm to 600mm

Brand

  • KSB

KSB Gate Valve Pressure Rating

  • 150# Class
  • 300# Class
  • 600# Class
  • 900# Class
Body Materials

Overview of available materials

Material Temperature limit
ASTM A 105 Up to 427 °C / 800 °F
ASTM A 182 F11 Up to 593 °C / 1100 °F
ASTM A 182 F22 Up to 593 °C / 1100 °F
ASTM A 182 F304 Up to 816 °C / 1500 °F
ASTM A 182 F316 Up to 816 °C / 1500 °F
ASTM A 182 F304L Up to 427 °C / 800 °F
ASTM A 182 F316L Up to 450 °C / 850 °F
Dimensions and weights
Class NPS L T t n-Ø Ød ØD ØA ØB ØC H [kg]
150 ½'' 108 11,5 1,6 4-16 9,5 15 35 60,5 89 52 2,11
¾'' 117 13,0 1,6 4-16 12,7 20 43 70,0 98 57 2,53
1'' 127 14,5 1,6 4-16 17,5 25 51 79,5 108 66 3,88
1 ½'' 165 17,5 1,6 4-16 28,6 40 73 98,5 127 80 6,23
2'' 178 19,5 1,6 4-19 36,5 50 92 120,5 152 100 10,50
300 ½'' 152 14,5 1,6 4-16 9,5 15 35 66,5 95 52 2,37
¾'' 178 16,0 1,6 4-19 12,7 20 43 82,5 117 57 3,76
1'' 203 17,5 1,6 4-19 17,5 25 51 89,0 124 66 5,13
1 ½'' 229 21,0 1,6 4-22 28,6 40 73 114,5 156 80 9,90
2'' 267 22,5 1,6 8-19 36,5 50 92 127,0 165 100 14,22
600 ½'' 165 20,7 6,4 4-16 9,5 15 35 66,5 95 52 2,46
¾'' 190 22,3 6,4 4-19 12,7 20 43 82,5 117 57 4,00
1'' 216 23,9 6,4 4-19 17,5 25 51 89,0 124 66 5,53
1 ½'' 241 28,7 6,4 4-22 28,6 40 73 114,5 156 80 10,75
2'' 292 31,8 6,4 8-19 36,5 50 92 127,0 165 100 15,90
Valve Diagram

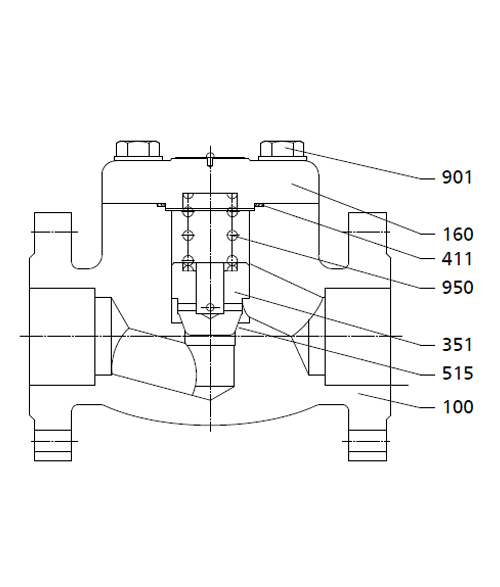

Forged Lift NRV Valve 150 600 Materials

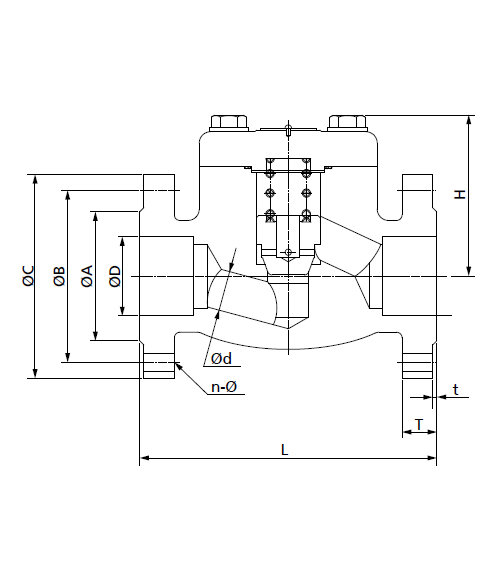

Forged Lift NRV Valve 150 600 Dimensions
