Forged Steel Globe valve

Forged Steel Globe Valve

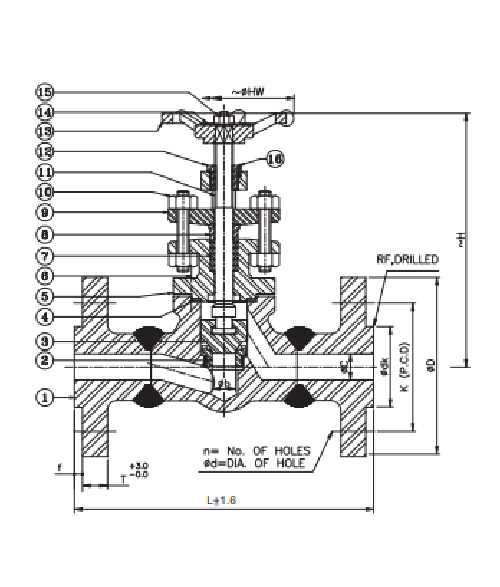

Forged Steel Globe Valve 2

Dimensions are in mm (inch)

S.NO. Part Name Carbon steel to ASTM Alloy steel to ASTM Stainless steel to ASTM
1 Body A105 A350 LF2 A182 F5 A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182F304L A182F316L
2 Seat Ring As per Trim Material Combination
3 Wedge As per Trim Material Combination
4 Gasket Spiral wound Stainless steel Graphoil filled
5 Bonnet A105 A350 LF2 A182 F5 A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182 F316 A182F316L
6 Studs A193B7 A320 L7 A193 B7 A193 B7 A193 B16 A193 B16 A193 B8 A19388 A19388 A193B8
7 Packing To suit service conditions
8 Gland A182 F6a A182 Fбa A182 F6a A182 F6a A182 F6a A182 F6a F-304 F-316 F-304L F-316L
9 Gland Flange A105 A350 LF2 A182 FS A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182F304L A182F316L
10 NUTS A194 2H A194 Gr.4 A194 2H A194 Gr.4 A194 Gr.4 A194 Gr.4 A194 Gr.8 A194 Gr.8 A194 Gr.8 A194 Gr.8
11 Stem As per Trim Material Combination
12 Yoke Sleeve Al. Bronze BS 1400 AB2C or Ni-resist to A439 D2
13 Handwheel DI. A536 80-55-06 OR MI/A338
14 Name Plate Aluminum / Steel
15 Handwheel Retaining Nut Carbon Steel
Body Material Combination with ASTMA F304H, F316H, F321, F347 also provided.

TRIM MATERIAL COMBINATION (ON REQUEST)

Trim No. Seat Ring Face Wedge Seat Face Stem Backseat Bush Lantern Ring
1 F6a/13%Cr. F6a/13%Cr. F6a/AISI410 F6a/AISI410 F6a/AISI410
2 F304 F304 F304/AISI304 F304/AISI304 F304/AISI304
5 STELLITE STELLITE F6a/AISI410 F6a/AISI410 F6a/AISI410
8 STELLITE F6a/13%Cr. F6a/AISI410 F6a/AISI410 F6a/AISI410
9 MONEL MONEL MONEL MONEL MONEL
10 F316 F316 F316/AIS1316 F316/AIS1316 F316/AIS1316
12 316+STELLITE 316 F316/AISI316 F316/AISI316 F316/AISI316
13 ALLOY 20 ALLOY 20 ALLOY 20 ALLOY 20 ALLOY 20
NOTE: Other Trim Combination can be provided as Trim Material Combination.

TRIM MATERIAL COMBINATION (ON REQUEST)

SIZE L ∅b C HW H D T dk f K n d Approx.Wt.
15mm 108 9.5 9.5 82 140 90 8 34.9 2 60.3 4 15.8 5.75
20mm 117 12.7 17.5 90 155 100 8.9 42.9 2 69.9 4 15.8 11.4
25mm 127 17.5 23 96 172 110 9.6 50.8 2 79.4 4 15.8 14.64
NOTE: The above data is subject to change without notice due to our continuing product improvement program. (WEIGHT GIVEN IN KGS) *Needle Type Disc also available.

TEST PRESSURES

CLASS SHELL TEST (HYDROSTATIC) SEAT TEST
HYDROSTATIC PNEUMATIC
150 30 Bar 435 Psi g 22 Bar 319 Psig g 6.9 bar 100 Psi g

Dimensions are in mm (inch)

S.NO. Part Name Carbon steel to ASTM Alloy steel to ASTM Stainless steel to ASTM
1 Body A105 A350 LF2 A182 F5 A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182F304L A182F316L
2 Seat Ring As per Trim Material Combination
3 Wedge As per Trim Material Combination
4 Gasket Spiral wound Stainless steel Graphoil filled
5 Bonnet A105 A350 LF2 A182 F5 A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182 F316 A182F316L
6 Studs A193B7 A320 L7 A193 B7 A193 B7 A193 B16 A193 B16 A193 B8 A19388 A19388 A193B8
7 Packing To suit service conditions
8 Gland A182 F6a A182 Fбa A182 F6a A182 F6a A182 F6a A182 F6a F-304 F-316 F-304L F-316L
9 Gland Flange A105 A350 LF2 A182 FS A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182F304L A182F316L
10 NUTS A194 2H A194 Gr.4 A194 2H A194 Gr.4 A194 Gr.4 A194 Gr.4 A194 Gr.8 A194 Gr.8 A194 Gr.8 A194 Gr.8
11 Stem As per Trim Material Combination
12 Yoke Sleeve Al. Bronze BS 1400 AB2C or Ni-resist to A439 D2
13 Handwheel DI. A536 80-55-06 OR MI/A338
14 Name Plate Aluminum / Steel
15 Handwheel Retaining Nut Carbon Steel
Body Material Combination with ASTMA F304H, F316H, F321, F347 also provided.

TRIM MATERIAL COMBINATION (ON REQUEST)

Trim No. Seat Ring Face Wedge Seat Face Stem Backseat Bush Lantern Ring
1 F6a/13%Cr. F6a/13%Cr. F6a/AISI410 F6a/AISI410 F6a/AISI410
2 F304 F304 F304/AISI304 F304/AISI304 F304/AISI304
5 STELLITE STELLITE F6a/AISI410 F6a/AISI410 F6a/AISI410
8 STELLITE F6a/13%Cr. F6a/AISI410 F6a/AISI410 F6a/AISI410
9 MONEL MONEL MONEL MONEL MONEL
10 F316 F316 F316/AIS1316 F316/AIS1316 F316/AIS1316
12 316+STELLITE 316 F316/AISI316 F316/AISI316 F316/AISI316
13 ALLOY 20 ALLOY 20 ALLOY 20 ALLOY 20 ALLOY 20
NOTE: Other Trim Combination can be provided as Trim Material Combination.

TRIM MATERIAL COMBINATION (ON REQUEST)

SIZE L b C HW H D T dk f K n d Approx.Wt.
15mm 165 12.7 13 90 155 95 14.3 34.9 7 66.7 4 15.7 6.8
20mm 190 18 20 96 172 115 15.9 42.9 7 82.6 4 19.1 13.3
25mm 216 23 25 114 210 125 17.5 50.8 7 88.9 4 19.1 18.5
32mm 229 30 32 155 235 135 20.7 63.5 7 98.4 4 19.1 -
40mm 241 35 35 155 235 155 22.3 73 7 114.3 4 22.3 34.1
50mm 292 36 46.5 155 270 165 25.4 92 7 127 8 19.1 39.7
NOTE: The above data is subject to change without notice due to our continuing product improvement program. (WEIGHT GIVEN IN KGS) *Needle Type Disc also available.

TEST PRESSURES

CLASS SHELL TEST (HYDROSTATIC) SEAT TEST
HYDROSTATIC PNEUMATIC
600 154 Bar 2175 Psi g 113 Bar 1595 Psi g 6.9 bar 100 Psi g

STANDARD MATERIAL COMBINATION

P.NO. DESCRIPTION Carbon steel to ASTM Alloy steel to ASTM Stainless to ASTM
1 BODY A105F A350 LF2 A182 F5 A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182F304L A182F316L
2 SEAT RING As per Trim Material Combination
3 WEDGE As per Trim Material Combination
4 GASKET Stainless steel + Graphoil
5 BONNET A105F A350 LF2 A182 F5 A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182 F316 A182F316L
6 STUDS A193B7 A320 L7 A193 B7 A193 B7 A193 B16 A193 B16 A193 B8 A193B8 A193B8 A193B8
7 PACKING To suit service conditions
8 GLAND A182 F6a A182 F6a A182 F6a A182 F6a A182 F6a A182 F6a F-304 F-316 F-304L F-316L
9 GLAND FLANGE A105F A350 LF2 A182 F5 A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182 F304L A182F316L
10 NUTS A194 2H A194 Gr.4 A194 2H A194 2H A194 Gr.4 A194 Gr.4 A194 Gr.8 A194 Gr.8 A194 Gr.8 A194 Gr.8
11 STEM As per Trim Material Combination
12 YOKE SLEEVE Al. Bronze BS 1400 AB2C or Ni-resist to A439 D2
13 HANDWHEEL DI. A536 80-55-06 OR MI IS 2108 BM290
14 WASHER CARBON STEEL (ANY GRADE)
15 HANDWHEEL RETAINING NUT CARBON STEEL
Body Material Combination with Body/Bonnet ASTMA F304H, F316H, F321, F347 also provided.

TRIM MATERIAL COMBINATION (ON REQUEST)

Trim No. Seat Ring Face Wedge Seat Face Stem Backseat Bush Lantern Ring
1 F6a/13%Cr. F6a/13%Cr. F6a/AISI410 F6a/AISI410 F6a/AISI410
2 F304 F304 F304/AISI304 F304/AISI304 F304/AISI304
5 STELLITE STELLITE F6a/AISI410 F6a/AISI410 F6a/AISI410
8 STELLITE F6a/13%Cr. F6a/AISI410 F6a/AISI410 F6a/AISI410
9 MONEL MONEL MONEL MONEL MONEL
10 F316 F316 F316/AIS1316 F316/AIS1316 F316/AIS1316
12 316+STELLITE 316 F316/AISI316 F316/AISI316 F316/AISI316
13 ALLOY 20 ALLOY 20 ALLOY 20 ALLOY 20 ALLOY 20
NOTE: Other Trim Combination can be provided as Trim Material Combination.

DIMENSIONAL DATA CLASS - 800 (REDUCED BORE)

DN NPS фb L1(BWE) L2(SWE) H фHW фSWE D Aprox. Wt.k
BS 3799 ASME B16.11
15 1/2 10 82 82 140 82 21.8/+0.3/-0.0 22.2 /21.8 11 1.64
20 3/4 12.7 90 90 155 90 27.4 /+0.3/-0.0 27.6 /27.2 14 2.050
25 1 18 96 96 175 96 34.1 /+0.3/-0.0 34.3/33.9 14 3.2
40 1/2 30 155 155 240 155 49 /+0.3/-0.0 49.2/48.8 14 7.5
50 2 35 170 170 270 155 61 /+0.3/-0.0 61.7/61.2 17 11.5
NOTE: The above data is subject to change without notice due to our continuing product improvement program. (WEIGHT GIVEN IN KGS) *Needle Type Disc also available.

TEST PRESSURES

CLASS SHELL TEST (HYDROSTATIC) SEAT TEST
HYDROSTATIC PNEUMATIC
800 207 Bar 3003 Psi g 152 Bar 2205 Psig g 6.9 bar 100 Psi g

Dimensions are in mm (inch)

S.NO. Part Name Carbon steel to ASTM Alloy steel to ASTM Stainless steel to ASTM
1 Body A105 A350 LF2 A182 F5 A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182F304L A182F316L
2 Seat Ring As per Trim Material Combination
3 Wedge As per Trim Material Combination
4 Gasket Stainless steel + Graphoil
5 Bonnet A105F A350 LF2 A182 F5 A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182 F316 A182F316L
6 Studs A193B7 A320 L7 A193 B7 A193 B7 A193 B16 A193 B16 A193 B8 A19388 A19388 A193B8
7 Packing To suit service conditions
8 Gland A182 F6a A182 Fбa A182 F6a A182 F6a A182 F6a A182 F6a F-304 F-316 F-304L F-316L
9 Gland Flange A105 A350 LF2 A182 FS A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182F304L A182F316L
10 NUTS A194 2H A194 Gr.4 A194 2H A194 Gr.4 A194 Gr.4 A194 Gr.4 A194 Gr.8 A194 Gr.8 A194 Gr.8 A194 Gr.8
11 Stem As per Trim Material Combination
12 Yoke Sleeve Al. Bronze BS 1400 AB2C or Ni-resist to A439 D2
13 Handwheel DI. A536 80-55-06 OR MI/A338
14 Name Plate CARBON STEEL (ANY GRADE)
15 Handwheel Retaining Nut Carbon Steel
Body Material Combination with ASTMA F304H, F316H, F321, F347 also provided.

TRIM MATERIAL COMBINATION (ON REQUEST)

Trim No. Seat Ring Face Wedge Seat Face Stem Backseat Bush Lantern Ring
1 F6a/13%Cr. F6a/13%Cr. F6a/AISI410 F6a/AISI410 F6a/AISI410
2 F304 F304 F304/AISI304 F304/AISI304 F304/AISI304
5 STELLITE STELLITE F6a/AISI410 F6a/AISI410 F6a/AISI410
8 STELLITE F6a/13%Cr. F6a/AISI410 F6a/AISI410 F6a/AISI410
9 MONEL MONEL MONEL MONEL MONEL
10 F316 F316 F316/AIS1316 F316/AIS1316 F316/AIS1316
12 316+STELLITE 316 F316/AISI316 F316/AISI316 F316/AISI316
13 ALLOY 20 ALLOY 20 ALLOY 20 ALLOY 20 ALLOY 20
NOTE: Other Trim Combination can be provided as Trim Material Combination.

DIMENSIONAL DATA CLASS - 800 (REDUCED BORE)

DN NPS фb L1(BWE) L2(SWE) H фHW фSWE D Aprox. Wt.k
BS 3799 ASME B16.11
15 1/2 12 100 100 172 96 21.8/+0.3/-0.0 22.2 /21.8 11 3.240
20 3/4 16 124 124 210 114 27.4 /+0.3/-0.0 27.6 /27.2 14 5.190
25 1 19 145 104 235 155 34.1 /+0.3/-0.0 34.3/33.9 14 8.1
32 1 1/4 28 170 170 270 155 49 /+0.3/-0.0 49.2/48.8 14 12.6
40 1 ½ 32 170 170 278 155 49 /+0.3/-0.0 49.7/48.8 14 12.6
NOTE: The above data is subject to change without notice due to our continuing product improvement program. (WEIGHT GIVEN IN KGS) *Needle Type Disc also available.

TEST PRESSURES

CLASS SHELL TEST (HYDROSTATIC) SEAT TEST
HYDROSTATIC PNEUMATIC
1500 384 Bar 5568 Psi g 282 Bar 4075 Psig g 6.9 bar 100 Psi g

STANDARD MATERIAL COMBINATION

P.NO. DESCRIPTION Carbon steel to ASTM Alloy steel to ASTM Stainless to ASTM
1 BODY A105F A350 LF2 A182 F5 A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182F304L A182F316L
2 SEAT RING As per Trim Material Combination
3 WEDGE As per Trim Material Combination
4 GASKET Stainless steel + Graphoil
5 BONNET A105F A350 LF2 A182 F5 A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182 F316 A182F316L
6 STUDS A193B7 A320 L7 A193 B7 A193 B7 A193 B16 A193 B16 A193 B8 A193B8 A193B8 A193B8
7 PACKING To suit service conditions
8 GLAND A182 F6a A182 F6a A182 F6a A182 F6a A182 F6a A182 F6a F-304 F-316 F-304L F-316L
9 GLAND FLANGE A105F A350 LF2 A182 F5 A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182 F304L A182F316L
10 NUTS A194 2H A194 Gr.4 A194 2H A194 2H A194 Gr.4 A194 Gr.4 A194 Gr.8 A194 Gr.8 A194 Gr.8 A194 Gr.8
11 STEM As per Trim Material Combination
12 YOKE SLEEVE Al. Bronze BS 1400 AB2C or Ni-resist to A439 D2
13 HANDWHEEL DI. A536 80-55-06 OR MI IS 2108 BM290
14 WASHER CARBON STEEL (ANY GRADE)
15 HANDWHEEL RETAINING NUT CARBON STEEL
Body Material Combination with Body/Bonnet ASTMA F304H, F316H, F321, F347 also provided.
