KSB Globe Straight 800-4500

Gate Valve 150 600

The high pressure and corrosion resistance of the KSB forged globe valve make it more advantageous to operate under all circumstances. Due to their superior quality and competitive pricing, KSB globe valves are the only ones available for purchase by customers.


Product Uses?

  • Mining
  • Chemical industry
  • Pharmaceuticals
  • Descaling units
  • Domestic water supply
  • Boiler feed applications
  • Boiler recirculation
  • Fossil-fuelled power stations
  • Cooling circuits
  • Pulp and paper industry
  • Petrochemical industry
  • Pharmaceutical industry
  • Pipelines and tank farms
  • Refineries
  • Rainwater harvesting
  • Process engineering Process engineering
  • Heat recovery systems
  • Hot-water heating systems
  • Water extraction
  • Water supply systems
  • Sugar industry

Ksb Forged Globe Valve Material

  • A105
  • 304L
  • 316L
  • F11
  • F22
  • F91
  • F304
  • F316

Size

  • 15MM (1/2’’) TO 50MM (2’’)

Brand

  • KSB

Ksb Forged Globe Valve Pressure Rating

  • 150# Class
  • 300# Class
  • 600# Class
  • 800# Class
  • 1500# class
  • 2500# class
  • 4500# class
Body Materials

Overview of available materials

Material Temperature limit
[°C] [°F]
ASTM A105 ≤ 425 ≤ 800
ASTM A182 304L ≤ 450 ≤ 850
ASTM A182 316L ≤ 450 ≤ 850
ASTM A182 F22 ≤ 593 ≤ 1100
ASTM A182 F91 ≤ 650 ≤ 1200
ASTM A182 F304 ≤ 816 ≤ 1500
ASTM A182 F316 ≤ 816 ≤ 1500
ASTM A350 LF2 ≤ 425 ≤ 800
Dimensions and weights of SICCA 800 GLF

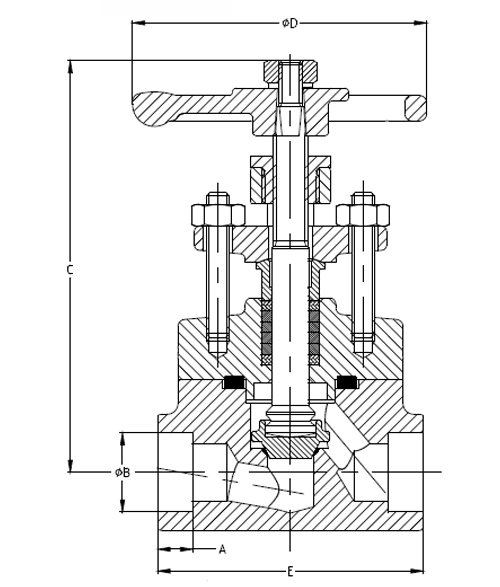

Globe Straight 800 4500 Dimensions 800
Class NPS A ØB C6)7) ØD E [kg]7)
[inch] [mm] [mm] [mm] [mm] [mm]
800 1/4 9,5 14,4 125 75 73 1,5
3/8 9,5 17,6 125 75 73 1,5
1/2 9,5 21,8 125 75 73 1,5
3/4 12,5 27,2 142 75 82 2,0
1 12,5 33,9 180 120 108 3,0
1 1/2 12,5 48,8 220 144 152 6,5
2 16,0 61,2 285 144 148 10,5

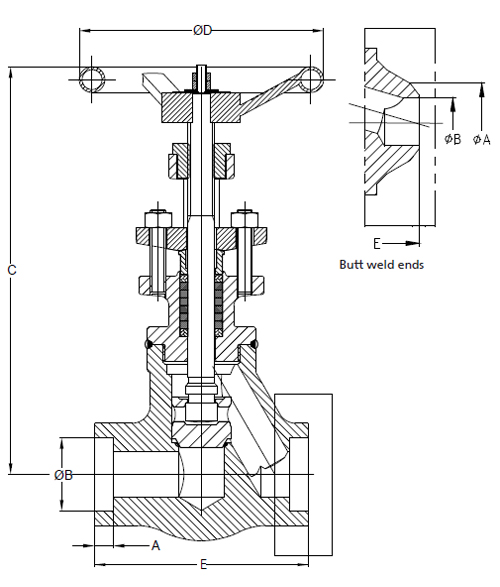

Dimensions and weights of SICCA 1500/2500 GLF
Globe Straight 800 4500 Dimensions 800
Class NPS A8) ØA9) ØB9) ØB8) C10)11) ØD E [kg]11)
[inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
1500 1/4 9,5 - - 14,4 197 127 73 3,0
3/8 9,5 - - 17,6 197 127 73 3,0
1/2 9,5 21,3 11,8 21,8 197 127 73 3,0
3/4 13 26,7 15,6 27,1 241 176 94 4,5
1 13 33,4 15,2 33,8 244 176 122 5,5
1 1/2 13 48,3 34,0 48,7 326 203 160 11,5
2 16,0 60,3 42,8 61,1 360 203 178 15,0
2500 1/4 10 - - 14,4 197 127 85 3,5
3/8 10 - - 17,6 197 127 85 3,5
1/2 10 21,3 6,4 21,7 197 127 85 3,5
3/4 13 26,7 11,0 27,1 243 152 98 5,0
1 13 33,4 15,3 33,8 290 152 104 7,0
1 1/2 13 48,3 28 48,7 351 203 146 12,5
2 16 60,3 38,2 61,1 378 254 172 16,0
Dimensions and weights of SICCA 4500 GLF

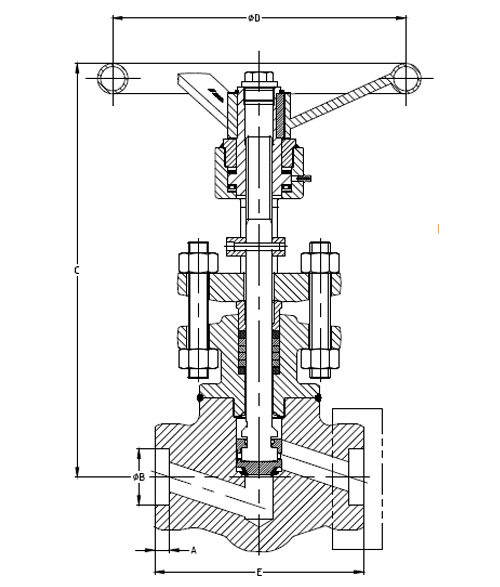

Globe Straight 800 4500 Dimensions With 4500

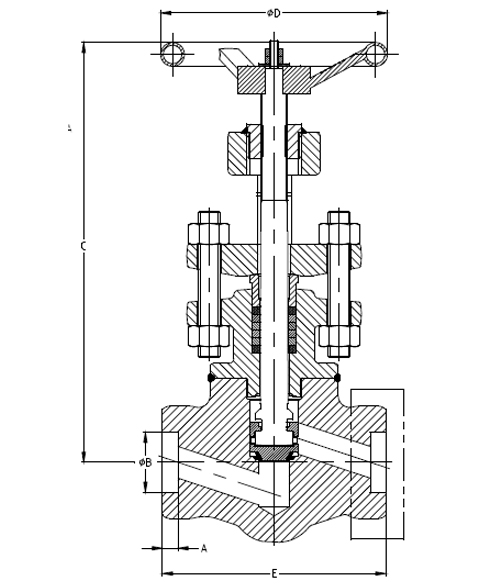

Globe Straight 800 4500 Dimensions Without 4500
Class NPS A12) ØA13) ØB12) ØB12) C14)15) ØD E [kg]15)
[inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
4500 1/2 10 21,3 10-16 21,7 309 254 140 11,5
3/4 13 26,7 10-16 27,1 309 254 140 11,5
1 13 33,4 12-20 33,8 348 305 170 16,7
1 1/216) 13 48,3 18-30 48,7 444 254 200 29,0
216) 16 60,3 24-38 61,7 455 356 230 40,3
