KSB Globe Valve 150-600

Globe Valve 150 600

The most durable globes in their class, KSB globes valves help plants last longer while maintaining a high standard of quality. It performs admirably in practically every application. They are more in demand on the global market since they are available in nearly all materials and pressure ratings


Product Uses?

  • Refineries
  • Power Plant
  • Pharmaceuticals
  • Water Waste Management

KSB Globe Valve Material

  • WCB
  • WC6
  • WC9
  • LCB

Size

  • 50mm to 600mm

Brand

  • KSB

KSB Globe Valve Pressure Rating

  • 150# Class
  • 300# Class
  • 600# Class
  • 900# Class
Body Materials

Overview of available materials

Material Temperature limit
[°C] [°F]
ASTM A216 WCB ≤ 425 ≤ 800
ASTM A217 WC6 ≤ 593 ≤ 1100
ASTM A351 CF8 ≤ 537 ≤ 1000
ASTM A351 CF8M ≤ 537 ≤ 1000
Pressure/temperature ratings
Class Material [°C]
-29 to +38 93 149 204 260 316 343 371 399 427 454 482 510 538 566 593 621 649 677 704 732 760 788 816
150 A216 WCB1) 20 18 16 14 12 10 9 8 7 6 5 3 2 1 - - - - - - - - - -
300 51 47 45 44 42 39 38 37 35 28 22 16 9 6 - - - - - - - - - -
600 102 94 90 87 83 78 76 73 70 57 44 32 19 12 - - - - - - - - - -
150 A217 WC6 2)3) 20 18 16 14 12 10 9 8 7 6 5 3 2 1 1 1 1 1 - - - - - -
300 52 52 50 48 46 42 41 39 37 35 33 31 22 15 10 7 5 3 - - - - - -
600 103 103 100 96 92 83 81 78 73 70 67 62 44 30 20 13 9 6 - - - - - -
150 A351 CF84) 19 16 14 13 12 10 9 8 7 6 5 3 2 1 1 1 1 1 1 1 1 1 1 1
300 50 41 37 34 32 30 30 29 29 28 27 27 26 25 22 18 14 11 9 8 7 5 4 3
600 99 83 74 69 64 61 60 58 57 56 55 54 53 49 45 36 28 23 18 16 13 10 8 6
150 A351 CF8M4) 19 16 15 13 12 10 9 8 7 6 5 3 2 1 1 1 1 1 1 1 1 1 1 1
300 50 43 39 36 33 31 30 30 29 29 29 29 27 25 25 21 16 13 10 8 7 5 4 3
600 99 86 77 71 66 62 61 60 59 58 58 57 53 50 50 42 33 26 20 16 13 10 8 6
Permissible Operating Pressures
Class Material [°F]
-20 to +100 200 300 400 500 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500
150 A216 WCB 1) 285 260 230 200 170 140 125 110 95 80 65 50 35 20 - - - - - - - - - -
300 740 680 655 635 605 570 550 530 505 410 320 230 135 85 - - - - - - - - - -
600 1480 1360 1310 1265 1205 1135 1100 1060 1015 825 640 460 275 170 - - - - - - - - - -
150 A217 WC62)3) 290 260 230 200 170 140 125 110 95 80 65 50 35 20 20 20 20 15 - - - - - -
300 750 750 720 695 665 605 590 570 530 510 485 450 320 215 145 95 65 40 - - - - - -
600 1500 1500 1445 1385 1330 1210 1175 1135 1065 1015 975 900 640 430 290 190 130 80 - - - - - -
150 A351 CF84) 275 230 205 190 170 140 125 110 95 80 65 50 35 20 20 20 20 20 20 20 20 20 20 15
300 720 600 540 495 465 440 430 420 415 405 395 390 380 355 325 255 205 165 135 115 95 75 60 40
600 1440 1200 1075 995 930 885 865 845 825 810 790 780 765 710 650 515 410 330 265 225 185 150 115 85
150 A351 CF8M4) 275 235 215 195 170 140 125 110 95 80 65 50 35 20 20 20 20 20 20 20 20 20 20 15
300 720 620 560 515 480 450 440 435 425 420 420 415 385 365 360 305 235 185 145 115 95 75 60 40
600 1440 1240 1120 1025 955 900 885 870 855 845 835 830 775 725 720 610 475 370 295 235 190 150 115 85
Dimensions and Weights
Class NPS ØB C5)6)7) ØD E F8) ØG8) With flanged ends6) With butt weld ends6)
[inch] [mm] [mm] [mm] [mm] [mm] [mm] [kg]7) [kg]7)
150 2 51,0 350,0 203,0 203,0 203,2 52,5 25,0 20,0
2 1/2 63,5 410,0 254,0 216,0 216,0 62,5 35,0 30,0
3 76,0 420,0 254,0 241,0 241,3 78,0 40,0 40,0
4 102,0 480,0 356,0 292,0 292,1 102,0 60,0 55,0
5 127,0 545,0 356,0 356,0 356,0 128,0 75,0 65,0
6 152,0 575,0 356,0 406,0 406,4 154,0 120,0 90,0
8 203,0 685,0 457,0 495,0 495,3 203,0 145,0 130,0
10 254,0 870,0 508,0 622,0 622,3 254,5 260,0 240,0
300 2 51,0 360,0 203,0 266,7 266,7 52,5 32,0 25,0
2 1/2 63,5 430,0 254,0 292,0 292,0 62,5 45,0 40,0
3 76,0 445,0 254,0 317,5 317,5 78,0 48,0 43,0
4 102,0 520,0 356,0 355,6 355,6 102,0 75,0 65,0
5 131,0 545,0 356,0 400,0 400,0 128,0 75,0 65,0
6 152,0 620,0 457,0 444,5 444,5 154,0 135,0 120,0
8 203,0 840,0 508,0 558,8 558,8 203,0 305,0 260,0
10 254,0 910,0 508,0 622,3 622,3 254,5 375,0 315,0
600 2 51,0 415,0 254,0 292,1 292,1 49,2 45,0 40,0
3 76,0 500,0 356,0 355,6 355,6 73,5 75,0 70,0
4 102,0 570,0 356,0 431,8 431,8 97,0 110,0 100,0
6 152,0 790,0 508,0 558,8 558,8 146,5 215,0 165,0
8 200,0 920,0 610,0 660,4 660,4 193,5 540,0 500,0
10 248,0 1140,0 610,0 787,4 787,4 243,0 790,0 720,0
Valve Diagram

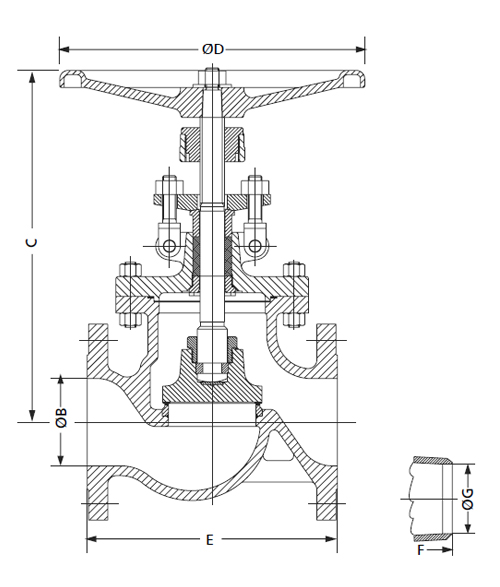

Gate Valve 150 600 Dimensions
Gate Valve 150 600 Materials
