Globe Valves ASME - 300

Experience the seamless operation of ASME-300 Globe Valves by partnering with Salim Export. We not only manufacture these valves but also supply them, ensuring you have access to top-tier products.

Standard Materials of Construction

  • Body : ASTM A216 Gr. WCB

  • Body Seat Ring : ASTM A182 Gr. F6a+HF

  • Disc : ASTM A216 Gr. WCB + 13% Cr. Steel

  • Disc Washer : 13% Cr. Steel

  • Stem : ASTM A182 Gr. F6a

  • Disc Stem Nut : 13% Cr. Steel

  • Gasket : ASTM A308

  • Bonnet : ASTM A216 Gr. WCB

  • Stud : ASTM A193 Gr. B7

  • Stud Nut : ASTM A194 Gr. 2H

  • Back-seat Bush : 13% Cr. Steel

  • Packing : Graphite with braided end rings

  • Gland : 13% Cr. Steel

  • Eye Bolt : Cr. - Mo Steel

  • Eye Bolt Nut : ASTM A194 Gr. 2H

  • Groove Pin : Steel

  • Yoke Bush : ASTM A439 Type D2

  • Washer : Steel

  • Handwheel Nut : ASTM A563 Gr. B

Globe Valves ASME 300 Class

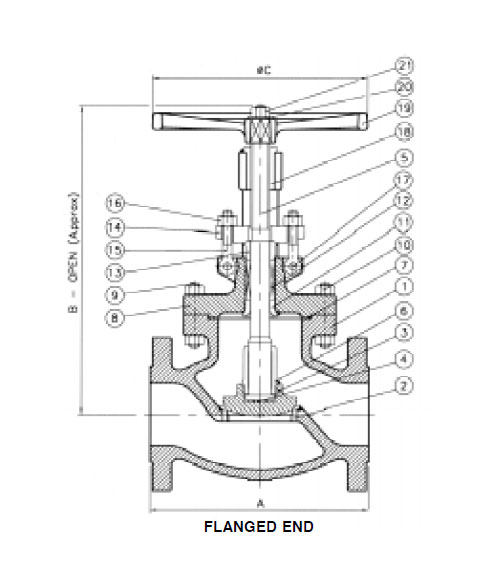

Globe Valves ASME 300 Flange End
Globe Valves ASME 300 Butt Weld End

Dimensions (in mm, unless specified) & Weights (in kg)

Valve Size A B C Approx.Wt.
Fl. B/W Fl. B/W
50 (2”) 267 267 355 203 33 28
65 (21/2”) 292 - 410 203 46 -
80 (3”) 317 317 457 254 58 50
100 (4”) 356 356 556 356 97 84
150 (6”) 445 445 668 457 186 164
200 (8”) 559 559 830 610 329 296
250 (10”) 623 623 1206 610 520 471
300 (12”) 711 711 1160 762 705 634
Globe Valves ASME 300 Flange End
Globe Valves ASME 300 Butt Weld End
