Leader Cast Gate - 1500

Leader Cast Gate 1500

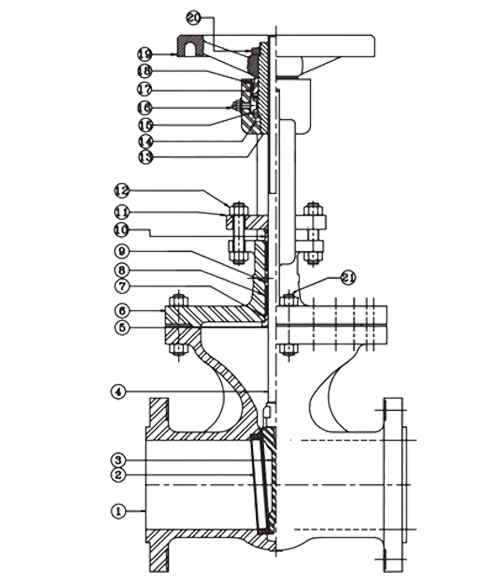

Leader Cast Gate Diagram 1500

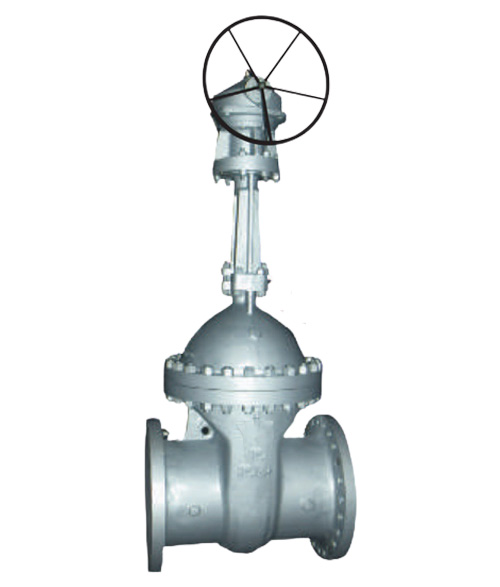

Leader Cast Gate2 1500

DIMENSIONAL DATA CLASS - 1500

DN 50 65 80* 100* 150* 200* 250* 300*
NPS 2 2½ 3 4 6 8 10 12
L 368 419 470 546 705 832 991 1130
L1 368 419 470 546 705 832 991 1130
L2 371 421 473 549 711 842 1001 1146
ØD 215 245 265 310 395 485 585 675
T 38.1 41.3 47.7 54 82.6 92.1 108 123.9
K(PCD) 165.1 190 203.2 241.3 317.5 393.7 482.6 571.5
n 08 08 08 08 12 12 12 16
Ød 25.4 28.6 31.8 35 38.1 44.5 50.8 54
~H(Close)(H1) 478 550 600 720 1144 1265 1385 1503
~H(Open) 528 615 - - - - - - -
ØHW 300 350 400 450 700 700 700 700
Aprox.wt. 93 140 173.5 327 633.81 1218 2405 3065
*For Gear Operated ValvesNOTE: The above data is subject to change without notice due to our continuing product improvement program. (WEIGHT GIVEN IN KGS)Flanges upto 24" as per ASME 16.5 and above 24" as per ASME 16.47 series A or B.

Test Pressures

Class Shell Test (Hydrostatic) Seat Test
Hydrostatic Pneumatic
150 30 Bar 435 Psi g 22 Bar 319 Psi g 6.9 bar 100 Psi g
300 77 Bar 1102 Psi g 57 Bar 780 Psi g 6.9 bar 100 Psi g
600 154 Bar 2175 Psi g 113 Bar 1595 Psi g 6.9 bar 100 Psi g
900 230 Bar 3350 Psi g 169 Bar 2451 Psi g 6.9 bar 100 Psi g
1500 384 Bar 5568 Psi g 282 Bar 4075 Psi g 6.9 bar 100 Psig

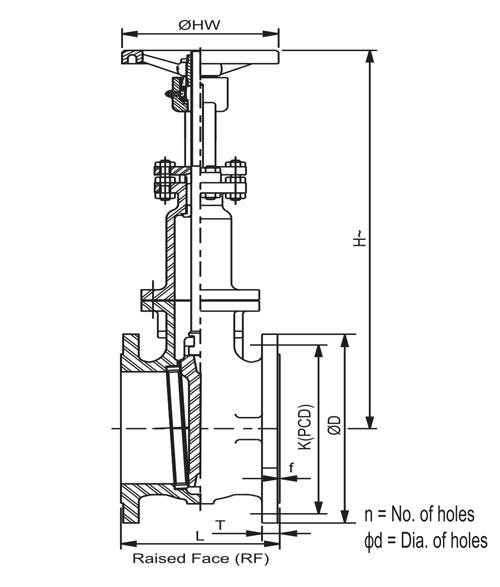

Leader Cast Gate3 Diagram 1500

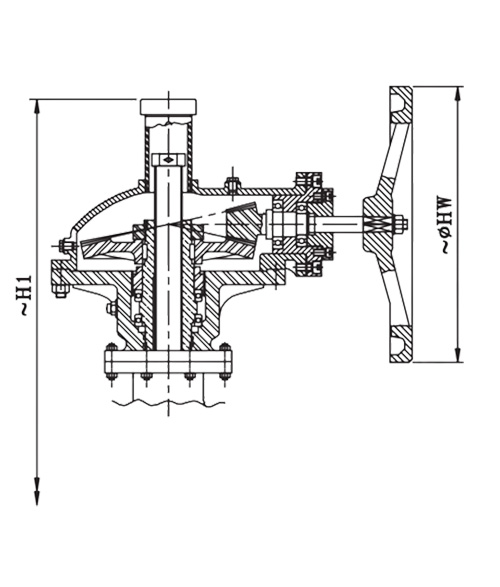

Leader Cast Gate4 Diagram 1500
