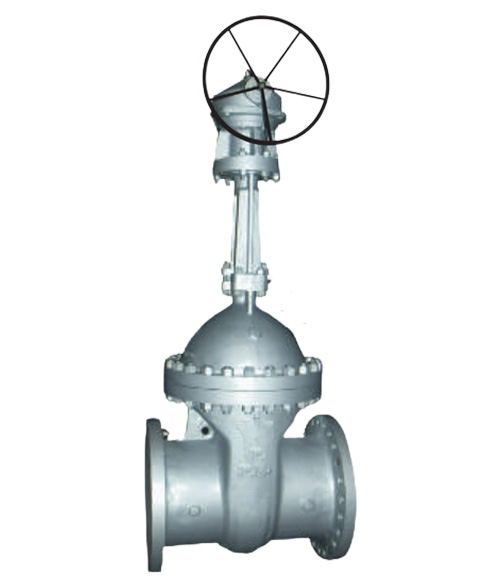

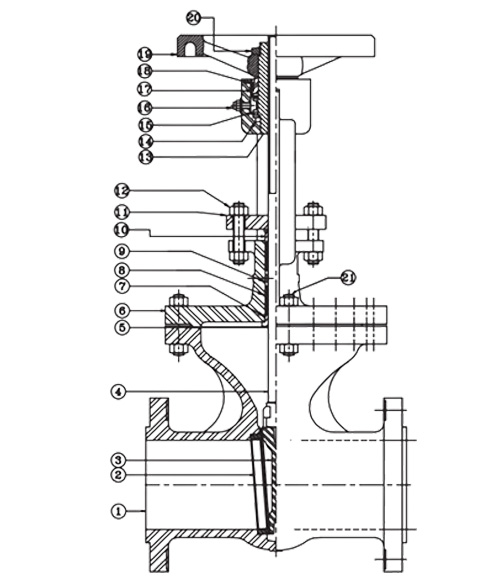

Leader cast Gate - 600

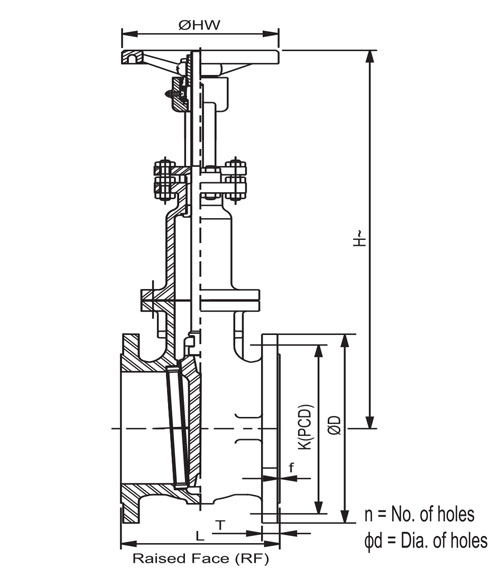

DIMENSIONAL DATA CLASS - 600

DN	40	50	65	80	100	125	150	200	250	300*	350*	400*	450*	500*	600*
NPS	1½	2	2½	3	4	5	6	8	10	12	14	16	18	20	24
L	241	292	330	356	432	508	559	660	787	838	889	99	1092	1194	1397
L1	241	292	330	356	432	508	559	660	787	838	889	99	1092	1194	1397
L2	241	295	333	359	235	511	562	663	790	841	890	993	1095	1200	1407
ØD	155	165	190	210	275	330	355	420	510	560	605	685	745	815	940
T	22.7	254	286	31.8	38.1	445	47.7	556	63.5	66.7	69.9	762	82.6	889	101.6
K(PCD)	114.3	127	149.3	168.1	216	266.7	292.1	349.2	431.8	489	527	603.2	654	724	838.2
n	04	08	08	08	08	08	12	12	16	20	20	20	20	24	24
Ød	22.2	19	22.2	22.2	254	28.6	28.6	31.8	349	34.9	38.1	41.1	44.5	44.5	50.8
~H(Close)	350	427	477	537	623	750	890	978	1040	-	-	-	-	-	-
~H(Open)	390	477	542	617	723	875	1040	1178	1290	-	-	-	-	-	-
ØHW	229	229	229	254	356	406	508	508	610	450	450	450	700	700	700
Aprox.wt.	32.9	46	75	80	153	264	298.5	593	677	1015	1321	1760	2415	2920	4400

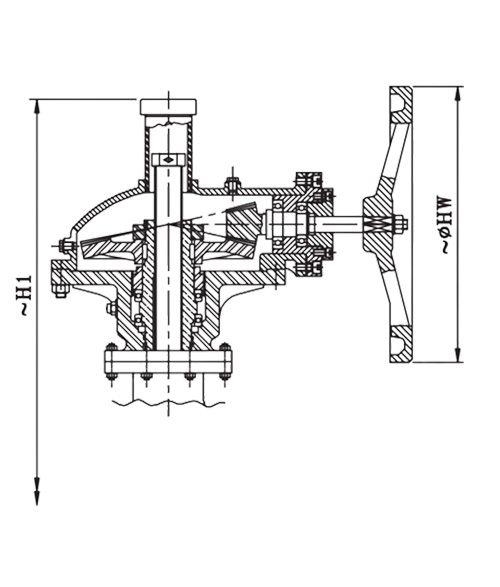

*For Gear Operated ValvesNOTE: The above data is subject to change without notice due to our continuing product improvement program. (WEIGHT GIVEN IN KGS)Flanges upto 24" as per ASME 16.5 and above 24" as per ASME 16.47 series A or B.
