Cast Iron Globe valve

Leader Cast Iron Globe Valve 125
Cast Iron Globe Valve 2

STANDARD MATERIAL COMBINATION

1 Body 1 C.I. BS EN1561 Gr. 200
2 Body Seat Ring 1 S.S. ASTM A182 Gr. F6a
3 Disc (SDSL) 1 C.I. BS EN1561 Gr. 200
4 Stem Nut 1 C.I. ASTM A182 Gr. F6a
5 Stem 1 S.S. ASTM A276 TYPE 410
6 Gasket 1 C.N.A.F.
7 Gland Packing - Flexible Graphite
8 Gland Follower 1 S.S. ASTM A276 TYPE 410
9 Bonnet 1 C.I. BS EN1561 Gr. 200
10 Yoke Bush 1 G.M. BS EN1982 Gr. CC491K
11 Lock Screw 1 S.S. Type 410
12 Thrust Plate 1 - Hardened Steel
13 Locking Washer 1 S.S Type 304
14 Studs & Nuts To Suit Carbon Steel BS 916
15 T-Head Bolts & Nuts 2 Each Carbon Steel BS 916
16 Hand Wheel 1 C.I. BS EN1561 Gr. 200
17 Washer 1 Carbon Steel IS 2062 Gr.A
18 Disc Ring 1 S.S. ASTM A182 Gr. F6a
19 Nut For Handwheel 1 Carbon Steel BS 916
20 Gland Flange 1 C.I. BS EN1561 Gr. 200
21 Indicator 1 G.M. BS EN1982 Gr. CC491K
NOTE: 1. The Above Data Is Subject To Change Without Notice Due To Our Continual Product Improvement Program. 2.Valves Can Be Supplied In Other MOC's On Request, Cast Iron (IS 210 Gr. FG 260) Ductile Iron (ASTMA 395 Gr. 60-40-18 / 65-45-15 / GGG 40.30) & D2 (ASTMA 439 Gr. D2/ D2A/ D2B/ D2C)
Item Sizes Item Code End Details
Cast Iron Globe Stop Valve PN-16 15mm TO 350mm CI-014 Flanged Ends TO DIN 2533

DIMENSION DATA

Valve Size 15MM 20MM 25MM 32MM 40MM 50MM 65MM 80MM 100MM 125MM 150MM 200MM 50MM 300MM 350MM
A 130 150 160 180 200 230 290 310 350 400 480 495 730 850 980
B 14 16 16 18 18 20 20 22 24 26 26 30 32 32 36
C 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
ØD 45 58 68 78 88 102 122 138 158 188 212 268 320 378 438
E 65 75 85 100 110 125 145 160 180 210 240 295 355 410 470
Ø F 95 105 115 140 150 165 185 200 220 250 285 340 405 460 520
Ø HW 120 120 120 120 140 140 180 180 235 260 320 400 400 400 450
~ H 165 165 170 200 230 255 305 320 350 405 460 529 640 710 770
n 4 4 4 4 4 4 4 8 8 8 8 12 12 12 16
Ø d 14 14 14 18 18 18 18 18 18 18 22 22 26 26 26
f 2 2 2 2 3 3 3 3 3 3 3 3 3 4 4

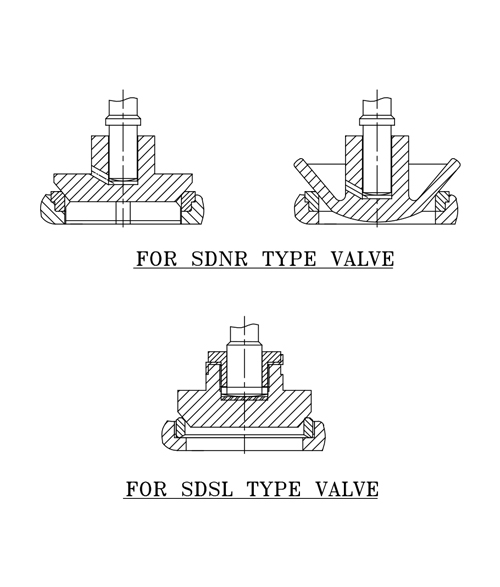

Cast Iron Globe Valve 3
