L&T Aquaseal Plus valve

Compliance Standards

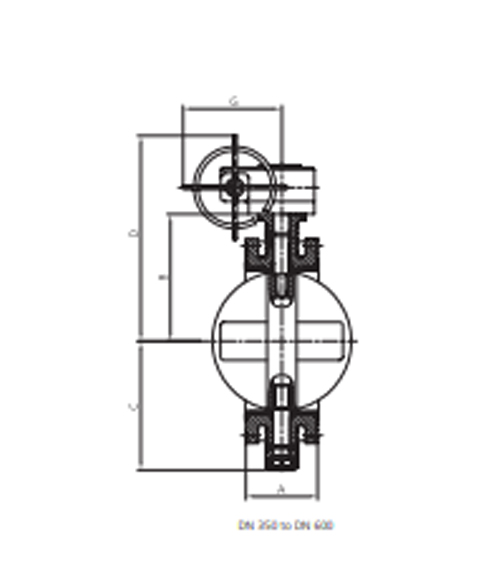

Valve Size		A	B	c			D	E
NPS	DN	A	B	Flow Control Lever	Standard Gear Unit	Heavy Duty Gear Unit	D	Wafer Flangeless	Wafer Lugged
2	50	43	99	129	277		65	102	158
2½	65	46	110	140	288		78	112	180
3	80	46	117	147	294		85	127	190
4	100	52	135	165	312		105	216
5	125	56	164	194	342		118	192	255
6	150	56	177	207	355		144	212	280
8	200	60	235	302	428	450	169	272	345
10	250	68	259	326	452	476	214	322	405
12	300	78	284	351	477	501	249	377	485
14	350	92	318		510	535	342	432	530
16	400	102	370			587	377	483	600
18	450	114	409			790	447	526	650
20	500	127	441			828	485	585	710
24	600	154	501			889	556	687	820
All dimensions in mm and weights in kg

F			G			ZN	ZF	Weight
Flow Control Lever	Standard Gear Unit	Heavy Duty Gear Unit	Flow Control Lever	Standard Gear Unit	Heavy Duty Gear Unit			Flow Control Lever		Standard Gear Unit
Flow Control Lever	Standard Gear Unit	Heavy Duty Gear Unit	Flow Control Lever	Standard Gear Unit	Heavy Duty Gear Unit			Wafer	Lugged	Wafer	Lugged
268	181		320	242		24	4	4	5	12	13
268	181		320	242		46	10	5	7	13	15
268	181		320	242		62	16	6	9	14	17
268	181		320	242		82	23	8	11	16	19
268	181		320	242		107	32	11	15	19	23
268	181		320	242		135	45	13	19	21	27
508	217	255	620	290	375	184	67	27	37	29	38
508	217	255	620	290	375	234	88	36	49	38	50
508	217	255	620	290	375	279	106	49	68	50	70
	217	255		290	375	324	123			95	120
		255			375	374	144			125	168
		437			552	423	163			160	215
		437			552	475	183			215	300
		437			552	573	220			320	410
