NRV Cast Steel Check Valve - 600

Nrv Cast Steel Check Valve Cl 600

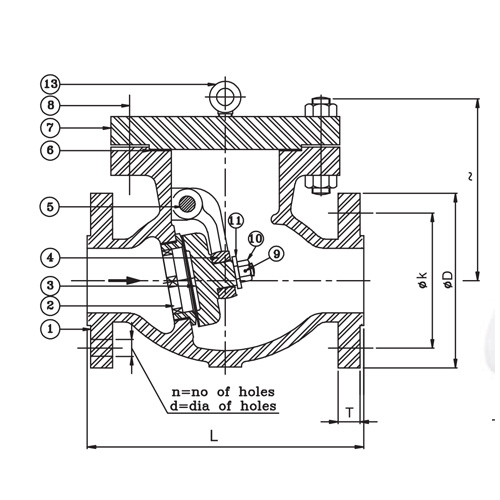

Nrv Cast Steel Check Valve Diagram 600

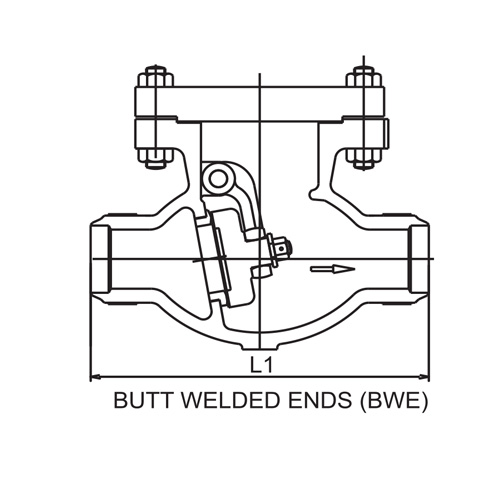

Nrv Cast Steel Check Valve Diagram2 600

DIMENSIONAL DATA CLASS - 600

DN 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600
NPS 1½ 2 2½ 3 4 5 6 8 10 12 14 16 18 20 24
L 241 292 330 356 432 508 559 660 787 838 889 991 1092 1194 1397
L1 241 292 330 356 432 508 559 660 787 838 889 991 1092 1194 1397
L2 241 295 333 359 435 511 562 663 790 841 892 994 1095 1200 1419
ØD 156 165 190 210 273 330 356 419 508 559 603 685.8 743 812.8 940
T 22.3 25.4 28.6 31.8 38.1 44.4 47.6 55.6 63.5 66.7 69.9 76.2 82.6 88.9 101.6
K(PCD) 114.3 127 149.2 168.3 215.9 266.7 292.1 349.2 431.8 489 527 603.3 654 724 838.2
n 04 08 08 08 08 08 12 12 16 20 20 20 20 24 24
Ød 22.2 19 22.2 22.2 25.4 28.6 28.6 31.8 34.9 34.9 38.1 41.2 44.5 44.5 50.8
H 145 170 182 200 216 320 275 332 385 455 580 670 750 820 1109
Øb 38 51 64 76 102 127 152 200 248 298 327 375 419 464 591
Aprox.wt. 33.85 42 62.55 65 157 233.5 274 472 692 875 1270 1346 2080 2746 4275
