Thermodynamic Strem Trap Valve FM TD 64

Size and Pipe Connections

  • 1/2”and 3/4”

  • Screwed NPT and socket weldable ends

  • Notes Available with Class 150,300 and 600 weld on flanges on request

Therrmodynamic Strem Trap Valve Fm Td 64

Note

  • For lower operating temperatures consult Forbes Marshall PMOB : Maximum back pressure should not exceed 80% of the inlet pressure under any conditions of operation otherwise the trap may not shut-off.

  • Optional extras Isotub- An insulating cover which prevents the trap from being unduly influenced by excessive heat loss such as when subjected to low outside temperature, wind, rain, etc.

Limiting Conditions

Body design conditions 914 psig
PMA Maximum allowable pressure 914 psig @212°F
TMA Maximum allowable temperature 752°F @ 609 psig
Minimum allowable temperature 32°F
PMO Maximum operating pressure 609 psig recommended
TMO Maximum operating pressure 752°F @ 609 psig
Minimum operating temperature 32°F
Minimum operating differential pressure for satisfactory operations 3.6 psig
Designed for a maximum cold hydraulic test pressure of 1378 psig

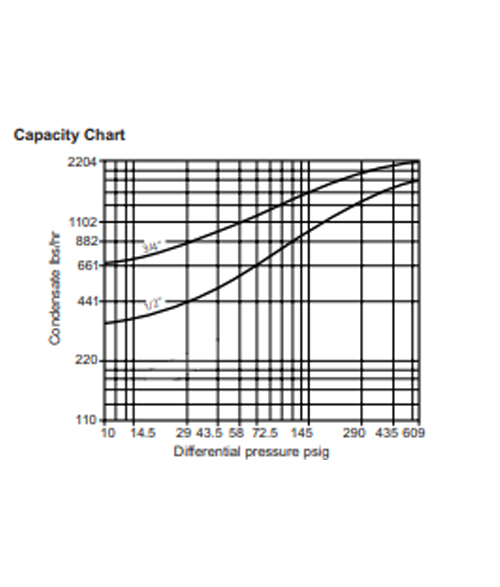

Therrmodynamic Strem Trap Valve 2 Fm Td 64

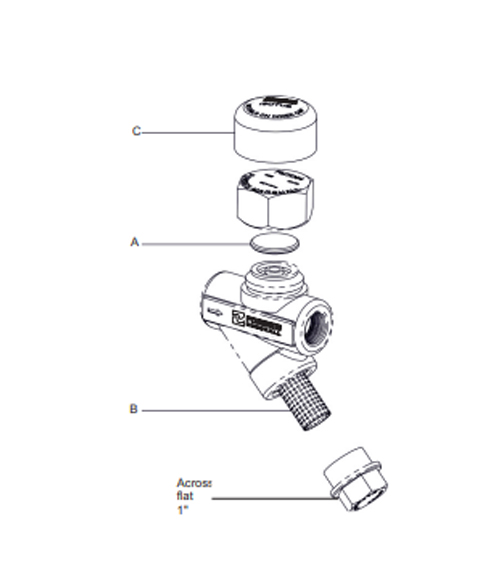

Therrmodynamic Strem Trap Valve 3 Fm Td 64
